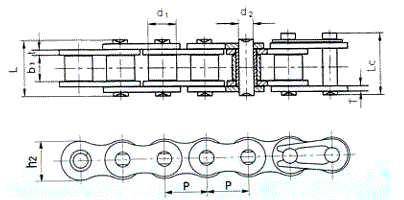

| Wiper Chain No | Pitch | Roller diameter | Width bet inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P mm |
d1 max mm | b1 max mm | d2 max mm | L max mm | c max mm | h2 max mm | t/T max mm | Q min mm | Q 0 kn | q kg/m | |
*25ZP *35ZP 41ZP 40ZP 50ZP 60ZP 80ZP 100ZP 04BZP 05BZP #06BZP 088BZP 10BZP 12BZP 16BZP 20BZP
|
6.350 9.525 12.700 12.700 15.875 19.050 25.400 31.750 6.000 8.000 9.525 12.700 15.875 19.050 25.400 31.750
|
3.30 5.08 7.77 7.95 10.16 11.91 15.88 19.05 4.00 5.00 6.35 8.51 10.16 12.07 15.88 19.05
|
3.18 4.77 6.25 7.85 9.40 12.57 15.75 18.90 2.80 3.00 5.72 7.75 9.65 11.68 17.02 19.56
|
2.31 3.58 3.58 3.96 5.08 5.94 7.92 9.53 .85 2.31 3.28 4.45 5.08 5.72 8.28 10.19 . |
7.90 12.40 13.75 16.60 20.70 25.90 32.70 40.40 6.80 8.20 13.15 16.70 19.50 22.50 36.10 41.30
|
8.40 13.17 15.00 17.80 22.20 27.70 35.00 44.70 7.80 8.90 14.10 18.20 20.90 24.20 37.40 45.00
|
6.00 9.00 9.91 12.00 15.09 18.00 24.00 30.00 5.00 7.10 8.20 11.80 14.70 16.00 21.00 26.40
|
0.80 1.30 1.30 1.50 2.03 2.42 3.25 4.00 0.60 0.80 1.30 1.60 1.70 1.85 4.15/3 4.5/3.5
|
3.50 7.90 6.67 14.10 22.20 31.80 56.70 88.50 3.00 5.00 9.00 18.00 22.40 29.00 60.00 95.00
|
4.6 10.8 12.6 17.5 29.4 41.5 69.4 109.2 3.2 5.9 10.4 19.4 27.5 32.2 72.8 106.7
|
0.15 0.33 0.41 0.62 1.02 1.50 2.60 3.91 0.11 0.20 0.41 0.69 0.93 1.15 2.71 3.70
|
