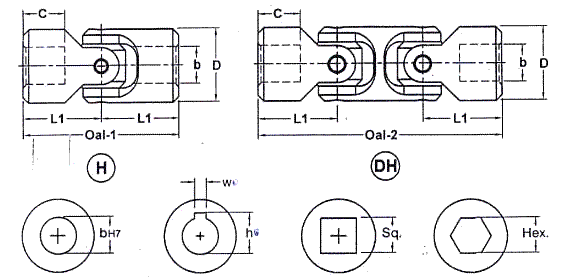

UNIVERSAL JOINTS TYPE H AND DH



TYPE BORE
H DH b H-7 D L1 Oal-1 Oal-2 C W x h Sq. Hex.
H-1 DH-1 6 16 17 34 56 8 2 x7 6 6
H-2 DH-2 8 16 20 40 62 11 2 x9 8 8
H-3 DH-3 10 20 24 48 74 12 3x11.4 10 10
H-4 DH-4 12 25 28 56 86 13 4x13.8 12 12
H-5 DH-5 14 28 30 60 96 13 5x16.3 14 14
H-6 DH-6 16 32 34 68 108 16 5x18.3 16 16
H-7 DH-7 18 36 37 74 118 17 6x20.8 18 18
H-8 DH-8 20 42 41 82 132 18 6x22.8 20 20
H-9 DH-9 22 45 47.5 95 148 22 6x24.8 22 22
H-10 DH-10 25 50 54 108 168 26 8x28.3 25 25
H-11 DH-11 28 54 58 116 180 29 8x31.3 - -
H-12 DH-12 30 58 61 122 192 29 8x33.3 - -
H-13 DH-13 32 58 65 130 200 33 10x35.3 - -
H-14 DH-14 35 70 70 140 222 35 10x38.3 - -
H-15 DH-15 40 80 80 160 255 40 12x43.3 - -
* Maximum angle 45 Type 'H' and 90 Type 'DH'
*Dimensions subject to change without notice
*All dimensions are in MM
