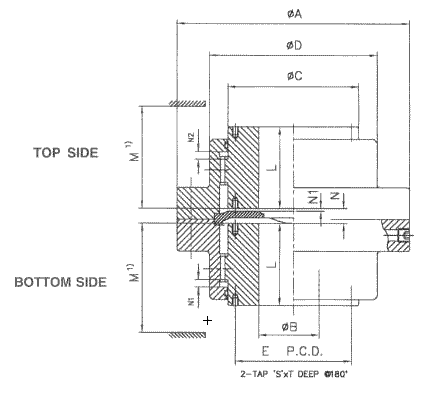

TYPE -EV



SIZE TKN CONTINUOUS TK MAX SHOCK PKN n CONTI. DIAMETER LENGTH TAPPING MISALIGNMENT WEIGHT MOMENTS OF INERTIA MAXMUM ADM. SPEED
A B
PILOT MIN. MAXI C D L M1 N N1 N2 E Sx T
daNm daNm KW rpm mm mm - DEGREE mm KG J(kgm2) 1/min
EV130 260 0.136 111 10 15 45 67 80 43 74 8 1.5 5.5 -- - 2x0.75 0.35 4.3 0.0057 5000
EV280 560 0.293 141 15 20 60 87 103.5 50 84 5 1.5 5.5 - - 2x0.75 0.4 8.4 0.017 4400
EV500 1000 0.524 171 25 30 75 106 129.5 62 104 12.5 1.5 6 - - 2x0.75 0.5 15.0 0.043 4000
EV1000 2000 1.047 210 30 35 95 130 156 76 123 11 2.5 8.5 - - 2x0.75 0.6 26.0 0.110 3600
EV1600 3200 1.675 234 35 40 110 151 181 90 148 13 2.5 8.5 130 M8x12 2x0.75 0.7 39.0 0.206 3350
EV2200 4400 2.304 274 50 55 130 178 209 105 172 14 3 12 155 M8x12 2x0.75 0.9 61.0 0.461 3100
EV3200 6400 3.351 312 60 65 155 213 247 120 192 15 3 12 185 M10x15 2x0.75 1.0 93.0 0.935 2800
EV4500 9000 4.712 337 75 80 175 235 273 135 216 17 4 16 205 M12x18 2x0.75 1.1 122.0 1.454 2700
EV6200 12400 6.492 380 85 90 195 263 307 150 241 20 4 16 226 M16x24 2x0.75 1.2 175.0 2.710 2550
EV8400 16800 8.769 405 95 100 215 266 338 175 279 27 4 16 250 M16x24 2x0.5 0.9 236.0 4.320 2450
EV11500 23000 12.042 444 115 120 240 316 368 190 304 34 4 16 276 M16x24 2x0.5 1.0 295.0 6.480 2300



  • SPACE REQUIRED TO CHANGE THE SEAL
  • KEYWAYS ACCORDING TO DIN.6885 PART-1
  • MAXIMUM ANGULAR MISALIGNMENT * 075
  • WEIGHT & MOMENT OF INERTIA BASED IN PILOT BORE CONDITION
  • CONTINUOUS TORQUE RATING SUBJECT TO ACCURATE ALIGNMENT OF CONNECTING SHAFTS
  • FOR HIGHER SIZE REQUIREMENT SEND REQUEST.
