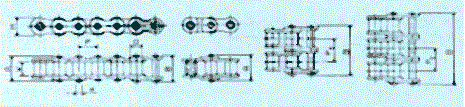

| PRECISION ROLLER CHAINS TO ISO 606/DIN 8187/BS STANDARD |
 |
| CHAIN NO | NO OF STANDARD | ISO /DIN/BS NO | PITCH (P) | WIDTH BER INNER PLATE(W)(MIN) | ROLLER DIA (D)(MAX) | PLATE DEPTH (H)(MAX) | PIN DIA (d) MAX | B/PIN LENGTH (A)(MAX) | C/PIN LENGTH (B)(MAX) | TRANSVERSE PITCH(Pt) | AVERAGE WEIGHT (KG/M) | TENSILE STRENGTH(KGF)(MIN) |
| D60 | 01 02 03
|
06B-1 06B-2 06B-3 |
9.525 | 5.72 | 6.35 | 8.26 | 3.28 | 13.50 23.80 34.00 |
16.80 27.10 37.30 |
10.24 | 0.42 0.78 1.16 |
920 1.725 2,540 |
| D083 | 01 02 03 |
08B-1 08B-2 08B-3 |
12.70 | 7.75 | 8.51 | 11.81 | 4.45 | 17.00 31.00 44.90 |
20.90 34.90 48.80 |
13.92 | 0.72 1.37 2.03 |
1,840 3,270 4,850 |
| D101 | 01 02 03 |
10B-1 10B-2 10B-3 |
15.875 | 9.65 | 10.16 | 14.73 | 5.08 | 19.60 32.60 52.80 |
23.70 40.30 56.90 |
16.59 | 0.92 1.82 2.72 |
2,290 4,540 6,810
|
| D120 | 01 02 03 |
12B-1 12B-2 12B-3 |
19.05 | 11.68 | 12.07 | 16.13 | 5.72 | 22.70 42.10 61.70 |
27.30 46.80 66.30 |
19.45 | 1.16 2.27 3.42 |
2,960 5,900 8,850 |
| D160 | 01 02 03 |
16B-1 16B-2 16B-3 |
25.40 | 17.02 | 15.88 | 27.08 | 8.28 | 36.10 68.00 99.90 |
41.50 73.40 105.30 |
31.88 | 2.69 5.31 7.92 |
6,120 11,600 17,400 |
| D200 | 01 02 03 |
20B-1 20B-2 20B-3 |
31.75 | 19.56 | 19.05 | 26.42 | 10.19 | 43.20 79.70 116.10 |
49.30 85.80 122.20 |
36.45 | 3.91 7.72 11.53 |
9,690 17,330 25,490 |
| D240 | 01 02 03 |
24B-1 24B-2 24B-3 |
38.10 | 25.04 | 25.40 | 33.40 | 14.63 | 53.40 101.80 150.20 |
60.00 108.40 156.80 |
48.36 | 7.16 14.15 21.15 |
16,310 28,550 43,330, |
| D280 | 01 02 03 |
28B-1 28B-2 28B-3 |
44.45 | 30.99 | 27.94 | 37.08 | 15.90 | 65.10 124.70 184.30 |
72.50 132.10 191.70
|
59.56 | 7.53 14.96 22.39 |
20,390 36,700 54,030 |
| D320 | 01 02 03 |
32B-1 32B-2 32B-3 |
50.80 | 30.99 | 29.21 | 42.29 | 17.81 | 67.40 126.00 184.50 |
75.30 133.90 192.40 |
58.55 | 9.48 19.68 29.52 |
25,500 45,880 68,300 |
| D400 | 01 02 03 |
40B-1 40B-2 40B-3 |
63.50 | 38.10 | 39.37 | 52.96 | 22.89 | 82.60 154.90 227.20 |
92.80 165.10 237.40 |
72.29 | 16.99 33.61 50.23 |
36,190 64,220 96,840 |
| D480 | 01 02 03 |
48B-1 48B-2 48B-3 |
76.20 | 45.72 | 48.26 | 63.88 | 29.24 | 99.10 190.04 281.60 |
109.80 200.90 292.10 |
91.21 | 23.92 47.48 71.05 |
57,090 1,01,940 1,52,910 |
