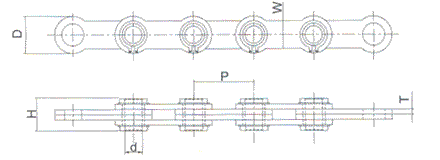

| CHAIN NO | PITCH NO (P) | STAY WIDTH(W) | BUSH DAI(D) MIN | PLATE WIDTH(D) | PLATE THICKNESS(T) 2.65 | TOTAL HEIGHT(H) MAX |
| C231 | 36.50 | 11.10 | 9.54 | 22.25 | 2.65 | 14.20 |
| C232 | 36.50 | 12.70 | 9.54 | 22.25 | 2.65 | 14.20 |
| C233 | 36.50 | 15.88 | 9.54 | 22.25 | 2.65 | 14.20 |
| C234 | 36.50 | 16.70 | 9.54 | 22.25 | 2.65 | 14.20 |
| C236 | 36.50 | 16.00 | 10.00 | 23.50 | 2.65 | 15.50 |
