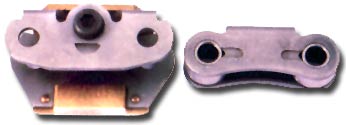

STENTER CHAIN

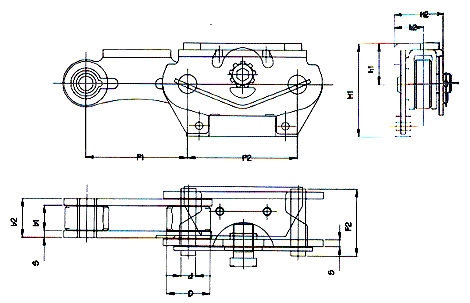

CHAIN NO P1 P2 D MAX B1 MIN B2 D MAX F2 MAX H1 MAX H2 H1 H2 MAX S
T60001 60.00 65.00 25.82 15.00 23.00 11.83 42.20 56.00 36.25 24.00 20.25 4.00
