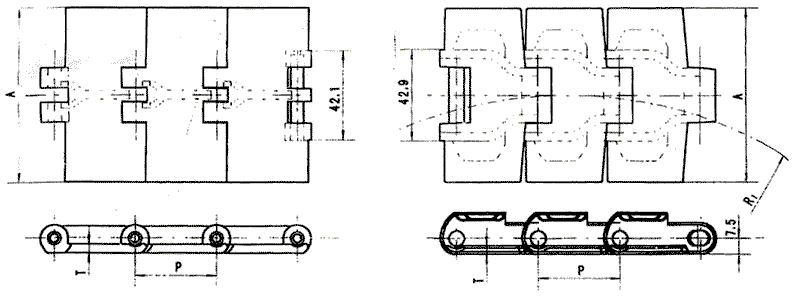

STRAIGHT RUN FLAT TOP |
 |
| Chain no | Pitch P min | Slat Width A mm | Slat thickness T mm | Baclflex radius R1(max) mm | Max working load Kn |
Weight Per Meter q kg/m |
PC10S PC13S PC14S PC16S PC18S PC24S PC30S |
38.1 | 63.5 82.6 88.9 101.6 114.3 152.4 190.5 |
4.0 | 50 | 1.23 | 0.69 0.82 0.87 0.95 1.00 1.20 1.44 |
| Chain no | Pitch P mm |
Slat Width A mm |
Slat thicknees T mm |
Sideflex radius R(min) mm |
Backflex radius R1(min) mm |
Max working load KN |
Weight per meter q kg/m |
PCC13S PCC18S |
38.1 | 82.5 114.3 |
4..0 | 457 | 50 | 2.10 | 1.15 1.30 |
