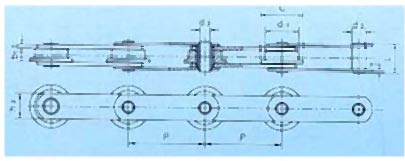

| STEEL CHAINS FOR SEWAGE DISPOSAL |
|
| Wiper Chain No. | Pitch | Width bet inner plates | Ultimate tensil srength | Average tensile strength | Weight per meter | ||||||||
P mm |
b1 min mm
|
d1 max mm | c max mm | d2 max mm | d3 mon mm | L max mm | h2 mm | T max mm | t max mm | Q min kn | Q0 kn | q kg/m | |
| W 152 | 152.4 | 25.40 | 66.7 | 85.7 | 27.1 | 20.0 | 58.8 | 50.0 | 5.0 | 7.0 | 110.0 | 122.1 | 10.50 |
