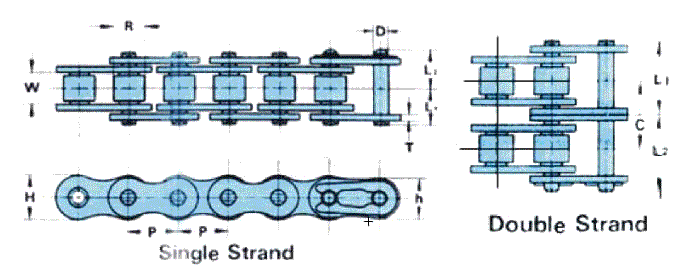

| Chain no | Pitch P | Roller dia R | Width bet Roller Link Plates W | PIN | LINK PLATE | Tranvarsa pitch C | Average Tensil Strength kgf | Maximum Allowable Load kgf | Approx Weight kgf | |||
| D | L1 | L2 | T | H | ||||||||
| 800 SERIES SINGLE STANDARD | ||||||||||||
RS 40AS RS50AS RS60AS RS90AS |
12.70 15.875 19.05 26.4 |
7.94 10.16 11.91 15.88 |
7.95 9.53 12.70 16.88 |
3.97 5.09 5.96 7.94 |
8.25 10.3 12.85 16.2 |
9.95 12.0 14.75 19.6 |
1.5 2.0 2.4 3.2 |
12.0 16.0 18.1 24.1 |
-- -- -- -- |
1,350 2,150 3,100 5,500 |
70 105 160 270 |
0.64 1.04 1.63 2.68 |
| 300 SERIES SINGLE STANDARD | ||||||||||||
RS25SS RS3688 RS4055 RS5088 RS6055 RS9088 RS10055
|
6.35 9.625 12.70 15.875 19.05 25.4 31.75
|
3.30 5.08 7.94 10.16 11.91 15.88 19.05
|
3.18 4.78 7.95 9.63 12.70 16.88 19.05
|
2.31 3.69 3.97 5.09 5.96 7.94 9.54
|
3.8 8.05 8.25 10.3 12.85 16.2 20.1
|
4.8 7.15 9.65 11.90 15.25 19.6 23.1
|
0.75 1.25 1.5 2.0 2.4 3.2 4.0
|
5.84 9.0 12.0 15.0 18.1 24.1 30.1
|
-- --- -- -- -- -- --
|
240 770 1,200 2,000 2,850 6,200 8,000
|
12 27 45 TD 105 180 280
|
0.14 0.33 0.84 1.04 1.53 2.68 4.01
|
| 300 SERIES DOUBLE STANDARD | ||||||||||||
RS35SS*2** RS40SS*2*** RS50SS*2*** RS60SS*2*** RS90SS*2*** RS10088*2***
|
9.525 12.70 15.875 19.05 25.40 31.75
|
5.08 7.94 10.16 11.91 15.88 19.05
|
4.78 7.95 9.53 12.70 16.88 19.05
|
3.59 3.07 5.09 5.96 7.94 9.54
|
10.9 15.45 19.35 24.25 30.9 37.7
|
11.90 17.15 21.15 26.75 33.9 40.8
|
1.25 1.5 2.0 2.4 3.2 4.0
|
9.00 12.0 16.0 18.1 24.1 30.1
|
10.1 14.4 18.1 22.8 29.3 35.8
|
1,640 2,400 4,000 5,700 10,400 12,000 |
64 90 140 210 360 520 |
0.33 1.27 2.07 3.04 6.27 7.65 |
