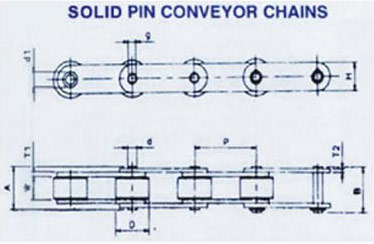

SOLID PIN CONVEYOR CHAIN

Tidc Chain No.	Pitch(P)	Width between inner plates(W.min)	Roller Diameter (d.max)	Bush Diameter (d1)	Plate Height(H.Max)	Plate Thickness		Pin Diameter(d) (Max)	Width Over Bearing Pin(A.Max)	With OverJoint Fastener(B.Max)	Average Weight Per Metre(Kgs)	Tensile Strength(Min.)(kgf)
Tidc Chain No.	Pitch(P)	Width between inner plates(W.min)	Roller Diameter (d.max)	Bush Diameter (d1)	Plate Height(H.Max)	Inner(T1)	Outer (T2)	Pin Diameter(d) (Max)	Width Over Bearing Pin(A.Max)	With OverJoint Fastener(B.Max)	Average Weight Per Metre(Kgs)	Tensile Strength(Min.)(kgf)
W08102 W10102 W12102 W16102 W20102 W24102	50.50 63.50 76.20 101.60 127.00 152.40	15.00	31.80	18.85	26.29	4.00	4.00	13.80	37.80	43.00	4.47 3.88 3.65 3.07 2.08 2.61	3,800
W12103 W16103 W20103 W24103 W28103 WG32103 W36103	76.20 101.60 127.00 125.40 177.80 203.20 228.60	19.05	47.62	25.20	36.00	5.56	4.00	18.26	46.80	51.40	7.46 6.20 5.50 5.03 4.75 4.45 4.28	10,000
W16104 W20104 W24104 W28104 W23104 W40101	101.60 127.00 152.40 177.80 203.20 254.00	25.40	66.67	34.25	50.80	5.00	26.92	26.92	57.60	61.60	13.46 11.77 10.50 9.75 9.00 8.12	17,000
