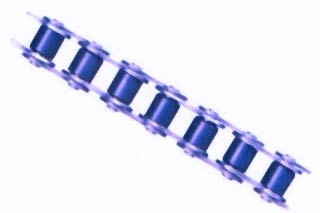

| Sintered bush chains are recommended for application where lubrication is often not possible like food food processing ,printing, pharmaceuticals and electronics. |
 |
| intl Ref No. | Chain No. | Pitch (P) | Width between inner plates(W)(Min) | Roller dia (d)(max) | Plate height(h)(max) | Width Over Bearing Pin (a)(max) | Bearing pin dia (d) (max) | Width Over Joint Fasteners(b)(max) | Projected BearingArea Sq.cm | Avg Weight Per Meter (kg) | Tensile Strength(kgf)(min) |
| 08B-1 | L083 01 | 12.70 | 7.75 | 8.51 | 12.40 | 17.00 | 4.45 | 200.90 | 0.50 | 0.70 | 1840 |
| 10B-1 | L101 01 | 15.875 | 9.65 | 10.16 | 14.70 | 19.60 | 5.08 | 23.70 | 0.69 | 0.88 | 2290 |
| 12B-1 | l120 01 | 191.05 | 11.68 | 12.07 | 16.10 | 16.10 | 5.72 | 27.30 | 0.92 | 1.10 | 2960 |

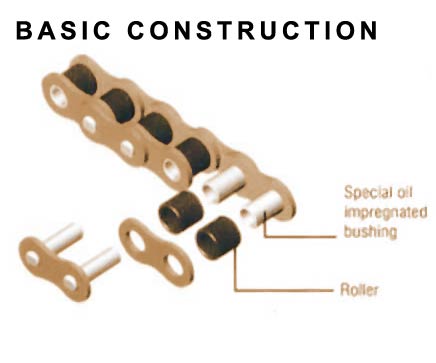

| These chains are designed for clean environment application where greasing is often possible:like food processing ,printing and pharmaceuticals.The bush has a unique powder alloy steel composition, that allow it to be impregnated with a special oil. Offers a wear-life up to two times in excess of standard chains. |  |
|
 |
||
 |
||
