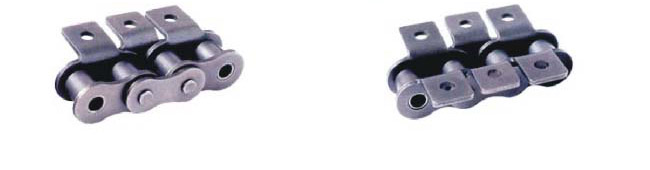

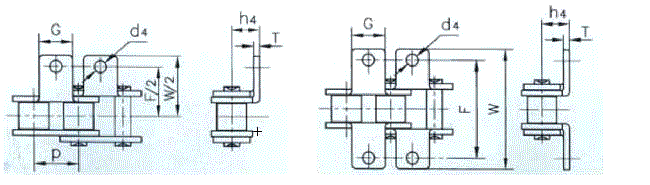

| SHORT PITCH CONVEYOR CHAIN ATTACHMENT |
 |
 |
| Din Iso Chain No |
ANSI CHAIN NO. |
P mm |
G mm |
F mm |
W mm |
T mm |
H4
mm |
D4 mm |
| 08A |
40 |
12.700 |
9.5 |
25.40 |
35.2 |
1.50 |
7.90 |
3.4 |
| 10A |
50 |
15.875 |
12.7 |
31.75 |
46.2 |
2.03 |
10.30 |
5.5 |
| 12A |
60 |
19.050 |
15.9 |
38.10 |
55.6 |
2.42 |
11.90 |
5.5 |
| 16A |
80 |
25.400 |
19.1 |
50.80 |
64.8 |
3.25 |
15.90 |
6.8 |
| 20A |
100 |
31.750 |
25.4 |
63.50 |
87.3 |
4.00 |
19.80 |
9.2 |
| 24A |
120 |
38.100 |
28.6 |
76.20 |
108.5 |
4.80 |
23.00 |
9.8 |
| 28A |
140 |
44.450 |
34.9 |
88.90 |
123.0 |
5.60 |
28.60 |
11.4 |
| 32A |
160 |
50.800 |
38.1 |
101.60 |
142.8 |
6.40 |
31.80 |
13.1 |
| 06B |
|
9.525 |
8.0 |
19.04 |
27.0 |
1.30 |
6.50 |
3.5 |
| 08B |
|
12.700 |
9.5 |
25.40 |
36.4 |
1.60 |
8.90. |
4.5 |
| 10B |
|
15.875 |
14.3 |
31.75 |
44.6 |
1.70 |
10.31. |
5.3 |
| 12B |
|
19.050 |
16.0 |
38.10 |
52.4 |
1.85 |
13.46 |
6.4 |
| 16B |
|
25.400 |
19.1 |
50.80 |
72.6 |
3.10 |
15.88 |
6.4 |
Straight side plates
