S AND C TYPE AGRICULTURAL CHAIN ATTACHMENT
 |
| CHAIN NO. |
P mm |
G mm |
f mm |
W mm |
h4 mm |
d4 mm |
k mm |
S42K1
S52K1
S62K1
S62K2 |
34.93
38.10
41.91
41.91 |
17.5
19.0
22.0
22.0 |
54.0
58.8
66.8
66.8 |
74.9
78.0
95.4
954 |
14.0
1.4
11.4
11.4 |
8.3
8.3
6.5
8.3 |
11.5
9.9
13.0
14.7 |
|
 |
 |
| CHAIN NO |
P mm |
G mm |
F mm |
W mm |
h4 mm |
d4 mm |
| S52F5 |
38.1 |
19.0 |
51.2 |
71.7 |
16.5 |
8.3 |
|
| CHAIN NO. |
P mm |
G mm |
fmm |
Wmm |
h4 mm |
d4 mm |
k mm |
S32K1
S55K1 |
29.21
41.40 |
15.20
22.0 |
42.9
54.0 |
61.0
75.0 |
8.6
11.4 |
5.3
8.5 |
6.9
11.7 |
|
 |
| CHAIN NO |
P mm |
G mm |
F mm |
W mm |
h4 mm |
d4 mm |
K mm |
| S55RK1 |
41.4 |
25.0 |
63.6 |
90.4 |
15.5 |
8.6 |
12 |
|
 |

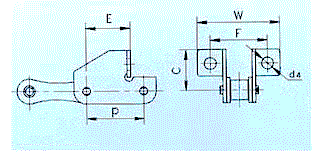

| CHAIN NO |
P mm |
E mm |
F mm |
W mm |
C mm |
d4 mm |
S45V
S55V
S55F |
41.4
41.4
41.4
|
28.5
28.5
31.9 |
62.4
57.5
62.0 |
83.4
83.4
89.2 |
33.75
33.75
29.00 |
8.8
6.5
8.3 |
|
 |
|
|
| CHAIN NO |
P mm |
E mm |
F mm |
W mm |
C mm |
d4 mm |
S52F4
S55F2
S55F3
SFFF4 |
38.1
41.4
41.4
41.4 |
27.0
27.0
22.3
37.0 |
53.8
58.0
58.0
58.0 |
69.5
87.0
85.6
87.0 |
29.4
30.0
32.0
32.0 |
6.4
6.4
6.6
6.6 |
|
 |
| CHAIN NO. |
P mm |
G mm |
F mm |
W mm |
h4 mm |
d4 mm |
K mm |
S52F1
CA557K1
CA550K1 |
38.4
41.4
41.4 |
23.0
22.0
22.0 |
57.5
50.8
52.5 |
80.0
72.0
76.2 |
16.0
15.9
12.7 |
8.7
8.7
8.3 |
8.7
8.7
10.0 |
|
 |
| CHAIN NO. |
P mm |
E mm |
F mm |
W mm |
h4 mm |
d4 mm |
| S52F2 |
38.4 |
39.0 |
57.0 |
80.0 |
16.0 |
10.5 |
|
|
| CHAIN NO. |
P mm |
G mm |
F mm |
W mm |
h4 mm |
d4 mm |
| CA55OF1 |
41.1 |
22.23 |
53.95 |
70.6 |
12.7 |
9.9 |
|
 |
| CHAIN NO. |
P mm |
G mm |
F mm |
W mm |
h4 mm |
d4 mm |
| CA5OF2 |
41.4 |
22.0 |
50.8 |
72.0 |
14.7 |
8.5 |
|
 |
| CHAIN NO |
P mm |
C mm |
F mm |
W mm |
E mm |
d4 mm |
S52F3
CA550SD |
38.4
41.4 |
35.25
42.90 |
52.0
47.6 |
73.0
68.2 |
37.4
36.9 |
8.7
8.7 |
|
|
| CHAIN NO. |
P mm |
E mm |
F mm |
W mm |
h4 mm |
d4 mm |
| CA557F1 |
41.4 |
60.0 |
53.94 |
76.2 |
14.6 |
9.9 |
|
 |
| CHAIN NO. |
P mm |
C mm |
a 0 |
| S62F1 |
41.91 |
50.0 |
50 |
|
 |
| CHAIN NO. |
P mm |
T mm |
C mm |
F mm |
w mm |
h4 mm |
d4 mm |
| CA550-F1A |
41.4 |
2.8 |
31.75 |
79.4 |
101.4 |
15.9 |
8.33 |
|
 |
| CHAIN NO |
P mm |
T mm |
C mm |
J mm |
K mm |
a o |
CA550-C6E
CA555-C6E |
41.4
41.4 |
2.8
3.1
|
55.6
63.5 |
23.6
23.6 |
13.5
13.5 |
20
15 |
|
 |
 |

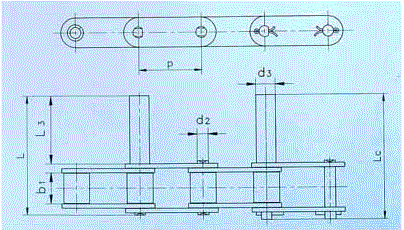

| CHAIN NO |
P mm |
b1 mm |
d2 mm |
d3 mm |
L3 mm |
L mm |
Lc |
CA550-D1
562F3-D1 |
41.40
41.91 |
19.81
25.40 |
12.7
12.7 |
12.7
12.7 |
50.8
40.0 |
84.5
80.4 |
87.5
83.0 |
|
