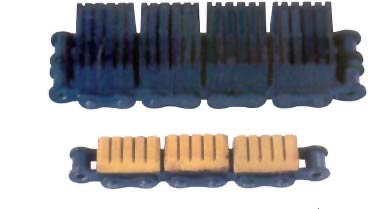

RUBBER TOP CHAINS



  • These chains are designed to face special needs in wood life,tile ,glass,cartoon printing,PVC tube extrusion industries.
  • The rubber attachment can be supplied with precision single or duplex roller chains.
  • Special profiles can be made on request .



GRADE NATURAL RUBBER NITRILE NEOPRENE RUBBER
SHORE HARDNESS(A) 65+/-5 65+/-5 65+/-5
TEMPERATURE RANGE -10 TO 70 deg c -10 TP 120 deg c -10 TO +80 deg c
RESISTANCE TO OIL/GREASE POOR EXCELLENT FAIR
OZONE/UV RESISTANCE POOR FAIR EXCELLENT

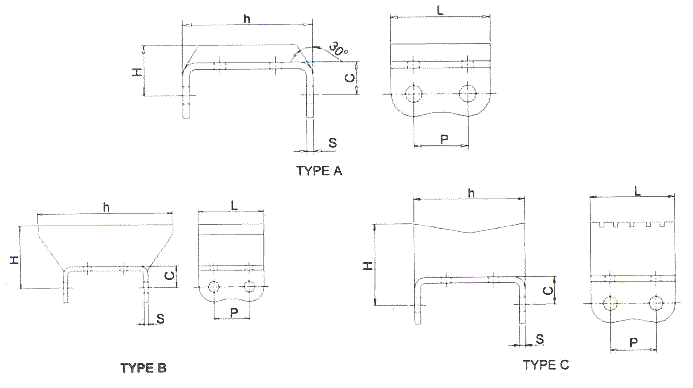

INTI REF. NO. CHAIN NO. TYPE PITCH(P) WIDTH OVER BEARING PIN (A) C H h L S TENSILE STRENGTH (KGF)(MIN)
08B-1 D08301RT01 A 12.70 17.80 8.30 12.30 14.72 24.00 1.50 1840
80-1 D16101RT01 A 25.40 38.00 18.30 23.00 27.50 49.40 3.15 5780
08B-2 D08302RT01 B 12.70 33.90 9.50 18.30 44.00 24.00 1.50 3270
08B-2 D08302RT02 A 12.70 33.90 9.50 12.50 28.50 24.0 1.50 3270
60-2 D12102RT01 C 19.05 53.00 11.80 33.80 45.56 34.87 2.00 6490
