| RACK CARRIER CHAINS |
 |
Detail of material Link- Forgede Steel Pin-Bush=Medium Carbon Steel Heat Treated |

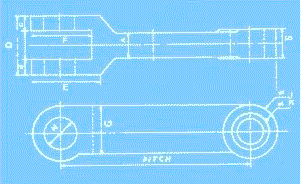

| Pitch | A | B | C | D | E | F | G | H | J | K Average |
Ultimate Strength |
229 200 |
28 19 |
35 28 |
18.5 13 |
72 55 |
83 76 |
76 70 |
56 46 |
35 26 |
70 62.5 |
41.75 | 60 Ton 40 Ton |
The main Link of the chain is manufactured of forged steel. Pins and Bushes are manufactured of alloy steel with heat treated for longer life.
