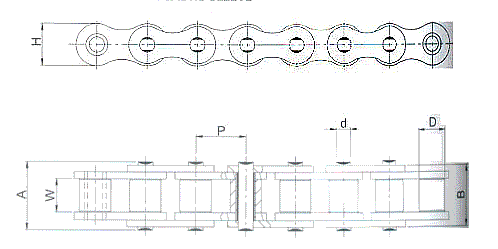

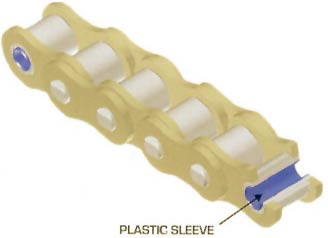

| CHAIN NO | PITCH (p) | WIDTH BETWEEN INEER PLATES (W)(min) | ROLLER DIA (D)(MAX) 8.51 | PLATE WIDTH (H)(MAX) |
BEARING PIN DIA (D)(MAX) | WIDTH OVER BEARING PIN (A) (MAX) | WIDTH OVER JOINTS FASTENERS(B)(MAX) | TRANSVERSE PITCH (P1) | PROJECTED BEARING AREA Sq.CM | AVG.WEIGHT PER METER (KG) | TENSILE STRENGTH KGF(MIN) |
| E08301ZPB01* | 25.40 | 7.75 | 8.51 | 11.80 | 4.45 | 17.00 | 20.90 | - | 0.50 | 0.47 | 1400 |
| D12Y01PB01 | 19.05 | 12.57 | 11.91 | 18.00 | 5.94 | 26.90 | 31.50 | - | 1.04 | 1.52 | 3180 |
| D12Y02PB01 | 19.05 | 12.57 | 11.91 | 18.00 | 5.94 | 49.70 | 54.40 | 22.78 | 2.08 | 3.01 | 6360 |
