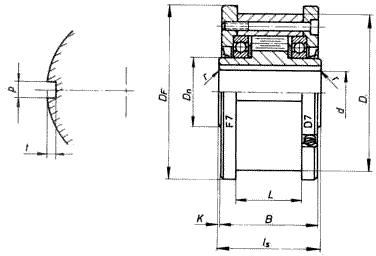

PLK TYPE F7- D7



SIZEdH7 mm NOMINAL TORQUE¹ TN Nm OVERRUNNING SPEED² D h7 mm IS mm DF mm Pmm tmm Dnmm Lmm Bmm Kmm r mm WEIGHT KG
max.INNERRACE RPM max.OUTERRACE RPM
12 29 2400 4800 62 42 70 4 2.4 20 20 40 1 0.5 0.9
15 50 1800 4300 68 52 76 5 2.9 25 28 50 1 0.8 1.3
20 84 1500 3700 75 57 84 6 3.5 30 34 55 1 0.8 1.7
25 124 1300 3100 90 60 99 8 4.1 40 35 58 1 1 2.6
30 230 1150 2600 100 68 109 8 4.1 45 43 66 1 1 3.5
35 290 1000 2200 110 74 119 10 4.7 50 45 71 1.5 1 4.5
40 490 900 1900 125 86 135 12 4.9 55 53 83 1.5 1.5 6.9
45 670 800 1700 130 86 140 14 5.5 60 53 83 1.5 1.5 7.1
50 1100 750 1600 150 92 160 14 5.5 70 64 83 2 1.5 10.1
55 1250 650 1500 160 104 170 16 6.2 75 66 100 2 2 13.1
60 1800 600 1400 170 114 182 18 6.8 80 78 110 2 2 15.6
70 2650 500 1300 190 134 202 20 7.4 90 95 130 2 2.5 20.4
80 4000 400 1150 210 144 222 22 8.5 105 100 140 2 2.5 26.7
90 7500 300 1000 230 158 242 25 8.7 120 115 153 2.5 3 39.0
100 9500 250 900 270 182 282 28 9.9 140 120 176 3 3 66.0
120 13900 180 700 310 202 322 32 11.1 160 140 196 3 4 91.0
150 27000 120 450 400 246 412 36 12.3 200 180 240 3 4 186



KEYWAYS :TO DIN 6885 PAGE 1

1)T max IS 2.5 x NOMINAL TORQUE (TN) FOR SHORT PERIODS ONLY.

2)THE MAXIMUM OVERRUNNING SPEEDS ARE OIL BATH LUBRICATIONS ONLY.

FOR PRESSURE LUBRICATION 150% OF INDICATED SPEEDS.

IF HIGHER SPEEDS ARE REQUIRED OTHER THAN THOSE LISTED PLEASE CONSULT.

WHEN ORDERING PLEASE INDICATED DIRECTION OF ROTATION :

-R- WHEN VIEWED FROM COVER D2 INNER RACE OVERRUNS IN ARE CLOCKWISE DIRECTION

FREEWHEEL WITH SPECIALS BORE SIZES ARE AVAILABLE.
