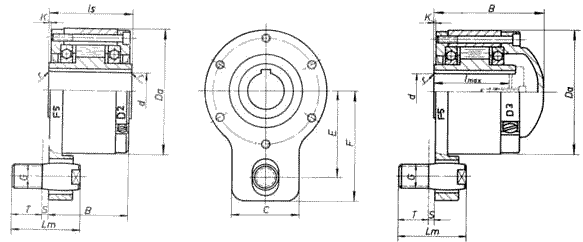

PLK TYPE F7- D7



SIZEdH7 mm NOMINAL TORQUE¹ TN Nm max². INNERRACE RPM Da mm Is mm F5-D2 F5-D3 Cmm Emm Fmm G Lm mm Smm Tmm Kmm r mm lMAXmm
Bmm Bmm
12 29 2400 62 42 40 57 35 44 58 M12 40 5 15 1 0.5 38
15 50 1800 68 52 50 66 35 47 62 M12 40 5 15 1 0.8 48
20 84 1500 75 57 55 72 45 54 74 M16 46 5 20 1 0.8 53
25 124 1300 90 60 58 75 45 62 82 M16 46 5 20 1 1 55
30 230 1150 100 68 66 83 55 68 90 M20X2 56 5 25 1 1 63
35 290 1000 110 74 71 88 55 76 98 M20X2 56 6 25 1.5 1 69
40 490 900 125 86 83 102 65 85 110 M24X2 62 6 30 1.5 1.5 80
45 670 800 130 86 83 102 65 90 115 M24X2 62 6 30 1.5 1.5 80
50 1100 750 150 92 83 110 75 102 132 M30X2 75 6 35 2 1.5 86
55 1250 650 160 104 100 1226 75 108 138 M30X2 75 6 35 2 2 97
60 1800 600 170 114 110 136 80 112 145 M30X2 75 6 35 2 2 107
70 2650 500 190 134 130 157 90 135 172 M36X2 100 6 45 2 2.5 127
80 4000 400 210 144 140 166 100 145 185 M40X2 105 6 50 2 2.5 137
90 7500 300 230 158 153 183 120 155 200 M48X2 120 7 55 2.5 3 150
100 9500 250 270 182 176 210 130 180 230 M52X2 135 8 60 3 3 172
120 13900 180 310 202 196 230 160 205 260 M60X2 140 8 65 3 4 192
150 27000 120 400 246 240 278 190 255 315 M72X2 165 8 75 3 4 236



KEYWAYS :TO DIN 6885 PAGE 1

1)T max IS 2.5 x NOMINAL TORQUE (TN) FOR SHORT PERIODS ONLY.

2)THE MAXIMUM OVERRUNNING SPEEDS ARE OIL BATH LUBRICATIONS ONLY.

FOR PRESSURE LUBRICATION 150% OF INDICATED SPEEDS.

IF HIGHER SPEEDS ARE REQUIRED OTHER THAN THOSE LISTED PLEASE CONSULT.

WHEN ORDERING PLEASE INDICATED DIRECTION OF ROTATION :

-R- WHEN VIEWED FROM COVER D2 INNER RACE OVERRUNS IN ARE CLOCKWISE DIRECTION

FREEWHEEL WITH SPECIALS BORE SIZES ARE AVAILABLE.
