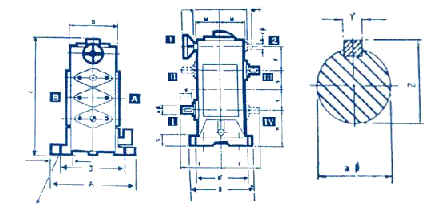

PIV GEARBOX VERTICAL TYPE -U
![](positive_chain_img/piv_gearbox_vertical_type_u.gif) |
Dimension/Model |
0 UV |
1 UV |
2 UV |
3 UV |
4 UV |
5 UV |
15 UV |
A |
210 |
285 |
345 |
390 |
470 |
590 |
750 |
B |
115 |
185 |
235 |
300 |
345 |
425 |
510 |
C |
214 |
430 |
505 |
615 |
755 |
880 |
1050 |
D |
150 |
170 |
220 |
268 |
310 |
380 |
460 |
E |
1105 |
160 |
210 |
233 |
255 |
325 |
400 |
H |
35 |
132 |
150 |
170 |
200 |
250 |
300 |
J |
335 |
410 |
495 |
615 |
755 |
870 |
1060 |
K |
85 |
150 |
200 |
265 |
295 |
360 |
410 |
L |
30 |
25 |
28 |
40 |
40 |
40 |
40 |
M |
67 |
85 |
110 |
134 |
155 |
190 |
230 |
N |
79 |
119 |
136 |
161 |
183 |
217 |
286 |
O |
77 |
98 |
132 |
155 |
177 |
212 |
260 |
P |
30 |
30 |
50 |
50 |
50 |
60 |
60 |
Q |
45 |
50 |
60 |
65 |
85 |
100 |
140 |
R |
13 |
14 |
18 |
18 |
23 |
28 |
35 |
S |
18 |
18 |
20 |
25 |
30 |
40 |
45 |
Y |
5 |
8 |
8 |
10 |
12 |
14 |
18 |
Z |
20 |
28 |
29 |
37 |
44 |
50 |
68 |
A |
15 |
24 |
25 |
32 |
38 |
45 |
60 |
C |
10 |
10 |
15 |
15 |
15 |
18 |
18 |
D |
32 |
60 |
80 |
80 |
80 |
110 |
140 |
F |
65 |
84 |
100 |
128 |
152 |
180 |
215 |
G |
60 |
80 |
95 |
124 |
152 |
180 |
215 |
