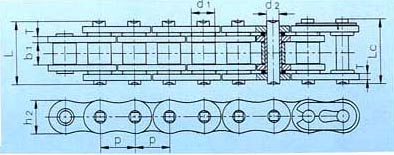

| Wiper Chain No | Pitch | Roller diameter |
Width betwen inner plates | Pin diameter |
Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
|
P mm |
d1 max mm |
b1 min mm |
d2 max mm |
L max mm |
Lc max mm |
h2 max mm |
t/T max mm |
Q min kN |
Qo kN |
q kg/m |
|
*25H *219H *270H *T3F 420 428 428H 520DS 520 520H 530 |
6.350 7.774 8.500 9.525 12.700 12.700 12.700 12.700 15.875 15.875 15.875 |
3.30 4.59 5.00 6.00 7.77 8.51 8.51 8.51 10.16 10.06 10.16 |
3.18 5.00 4.75 9.50 6.25 7.75 7.85 7.94 6.25 6.25 9.40 |
2.31 3.01 3.28 4.50 3.96 4.45 4.45 4.45 5.08 5.08 5.08 |
8.90 11.90 13.15 18.60 14.70 16.70 18.80 17.90 17.50 19.30 20.30
|
9.5 12.7
16.1 18.2 19.9 19.3 19.0 20.8 21.9 |
6.00 7.50 8.45 9.30 12.00 11.80 11.80 12.00 15.09 15.09 15.09
|
6.00 7.50 8.45 9.30 12.00 11.80 11.80 12.00 15.09 15.09 15.09
|
4.80 6.60 9.80 11.80 16.00 17.80 20.60 18.62 26.50 26.50 26.50
|
5.5 7.4 11.0 14.1 18.1 20.1 23.4 21.0 29.7 31.5 29.7 |
0.17 0.28 0.33 0.61 0.55 0.70 0.79 0.76 0.89 1.10 1.06
|
 |

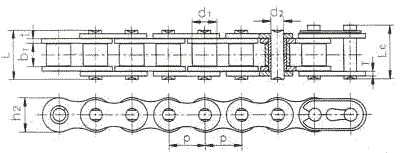

| Wiper Chain No | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average ensil srength | Weight per mneter | |
P mm |
d1 max mm | b1 min mm | d2 max mm | L max mm |
Lc max mm |
h2 max mm | T max mm | Q min kN | Qo kN | q kg/m | |
428HVS 50LD 520V6 |
12.700 15.875 15.875 |
8.51 10.16 10.16
|
7.94 9.53 6.25 |
4.51 5.08 5.08 |
22.7 23.4 20.3 |
23.3 24.6 23.5 |
12.20 15.09 15.09 |
2.03 2.03 2.03 |
26.5 22.2 22.2 |
29.60 26.50 26.50 |
1.07 1.12
|
