| LUMBER CONVEYOR CHAIN ATTACHMENT |
 |

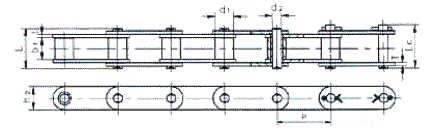

| Chain No | Pitch | Roller dia | Width bet inner plates | Pin dia | Pin Length | Inner plate depth | Plate thick | Ultimate tensil strength | Average tensile strength | Weight per meter | |
81X 81XH 81XHH 81XHS |
P | di max | bi min | d2 max | Lc max | Lc max | h2 max | t/T max | Q min | QC | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kn | kN | kg/m | |
66.27 66.27 66.27 66.27
|
23.00 23.00 23.00 23.00 |
27.00 27.78 27.78 27.00 |
11.10 11.10 11.10 11.10 |
49.00 60.70 65.60 63.60 |
53.50 65.10 70.00 68.00 |
28.50 31.35 31.35 31.80 |
4.00 7.94/5.55 7.94 7.60 |
106.7 151.9 191.1 152.0 |
128.9 175.7 212.6 177.2 |
3.78 5.88 6.70 6.55 |
|
 |

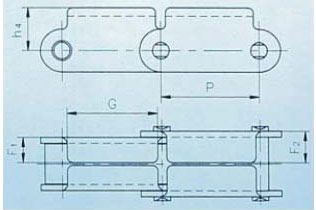

| Chain No. | p MM |
f1 mm |
F2 mm |
G mm |
h4 mm |
| 81 X F1 | 66.27 | 17.50 | 21.80 | 58.00 | 23.85 |
