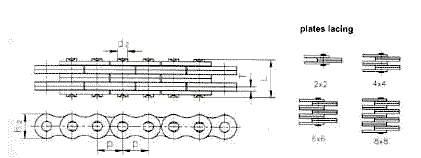

| Wiper Chain no | Pitch | Chain Laching | Plate depth | Plate thickness | Pin diameter | Pin length | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P mm | h2 max mm | T max mm | d2 max mm | L max mm | Q min kN | Qo KN | q kg /m | ||
LL0822 LL0844 LL0866 LL0888 LL1022 LL1044 LL1066 LL1088 LL1222 LL1244 LL1266 LL1288
|
12.700
15.875
19.050
|
2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8
|
10.60
13.70
16.00 |
1.30
1.60
1.85 |
4.45
5.08
5.72 |
7.6 13.0 18.2 23.5 9.2 15.8 22.1 28.8 10.4 17.9 25.4 32.9 |
17.8 31.1 44.5 62.2 22.3 44.5 66.5 89.0 28.9 57.8 86.7 115.6 |
20.4 35.7 50.9 71.2 25.5 51.0 76.3 101.9 33.2 66.4 99.7 132.9 |
0.35 0.69 1.00 1.33 0.54 1.06 1.57 2.10 0.73 1.44 2.15 2.48 |
 |

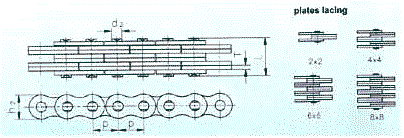

| Wiper Chain No | Pitch | Chain lacing | Plate depth | Plate thickness | Pin diameter | Pin length | Ultimate tensile strength | Average tensile strength | Weigth per meter |
| P mm | h2 max mm | d2 max mm | d2 max mm | L max mm | Q min kN | Qo kN | q kg/m | ||
LL1622 LL1644 LL1666 LL1688 LL2022 LL2044 LL2066 LL2088 LL2422 LL2444 LL2466 LL2488 LL2822 LL2844 LL2866 LL2888 LL3222 LL3244 LL3266 LL3288 LL4022 LL4044 LL4066 LL4088 LL4822 LL4844 LL4866 LL4888 |
25.400
31.750
38.100
44.450
50.8
63.5
76.2
|
2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8 2X2 4X4 6X6 8X8
|
21.00
26.40
33.40
37.08
42.00
52.76
63.88
|
3.10
3.70
5.00
6.00
6.00
8.25
10.30
|
8.23
10.19
14.63
15.90
17.81
22.89
29.24
|
17.2 29.6 42.4 55.4 20.1 33.8 50.1 65.4 28.4 46.3 66.4 86.6 32.2 56.4 80.6 105.2 33.2 57.4 81.6 105.0 44.7 77.9 111.1 145.5 56.1 97.4 138.9 182.4
|
58.0 144.0 200.0 288.0 95.0 190.0 285.0 380.0 170.0 340.0 510.0 680.0 200.0 400.0 600.0 800.0 260.0 520.0 780.0 1050.0 360.0 780.0 1080.0 1560.0 560.0 1120.0 1168.0 2240.0 |
66.7 164.6 230.0 331.2 109.2 218.5 324.6 435.1 195.5 380.8 571.2 775.2 224.0 448.0 672.0 896.0 291.2 582.4 873.6 1176.0 403.2 873.6 1209.6 1747.2 627.2 1554.4 1308.1 2508.8 |
1.52 2.90 4.30 5.71 2.33 4.40 6.79 8.75 4.47 8.22 12.22 16.30 5.10 9.90 14.60 19.40 5.8 1.4 16.9 24.0 10.3 20.2 29.5 39.1 18.5 35.7 53.0 70.4 |
