K TYPE SPECIFICATION

CONTROL ATTACHMENT

*HAND WHEEL CONTROL-KC-1(PINIOIN & GEAR TYPE)

* FINE MECHANICAL HAND WHEEL CONTROL-KC-2(WORM & WORM WHEEL TYPE)

MODEL DRIVE RATINGS
K-1 0.5HP-1 HP
K-2.5 1 HP- 3 HP
K-6 3 HP-5 HP
K-16 7.5 HP -20HP
K-30 20 HP-25 HP

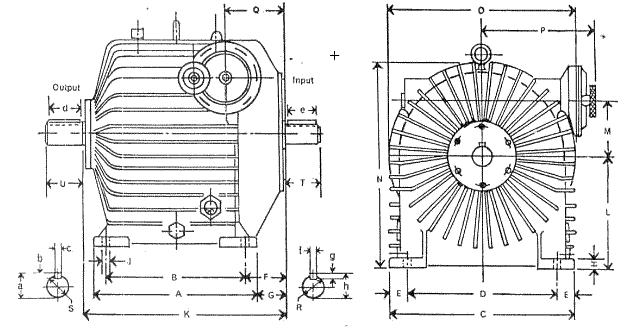

SIZE MOUNTING BODY
A B C D E F G H J K L M N O P Q
K50 460 380 475 380 47.5 94 54 30 18 564 300 155 561 523 295 145
K30 400 340 450 360 45 100 70 25 18 491 280 132 509 410 296 145
K16 285 245 372 300 36 70 50 25 16 362 212 120 416 408 270 117
K6 265 230 305 270 17.5 54.5 37 24 13 320 180 95 350 340 252 102
K2.5 235 205 252 200 26 17 2 20 13 242 150 78 278 278 197 58
K1.0 180 155 180 155 12.5 15 25 14 8 185 100 - 200 210 132 85
SIZE SHAFT KEY
Rh6 Sh6 T U a b c d e f g h NET WEIGHT
K50 50 55 80 100 60 10 16 80 70 14 10 55 296KG
K30 50 50 80 87 55 10 16 80 70 16 10 55 194KG
K16 40 45 75 80 49 9 14 70 65 12 8 43.5 120KG
K6 30 35 52 65 38.5 8 10 55 45 8 7 33 86KG
K2.5 25 30 45 50 33 7 8 36 36 8 7 28 50KG
K1.0 14 15 30 30 17 5 5 25 25 5 5 16 20KG
OIL CAPACITY OF VARIATORS SPECIFICATION & RECOMMENDED OIL
SIZE HOROZONTAL VERTICAL

THE OIL MUST HAVE FOLLOWING SPECIFICATIONS:

VISCOSITY AT 50°C=1.6-2.2°E

SOLIDIFICATION POINT =AT LEAST-20°C

RECOMMENDED OIL: (1) CALTEX=SPINTEX 60

(2)ESSO =SPINESSO 34

(3)SHELL=TELLUS 15

50
30
16 3.20 LITERS 5.5 LITERS
6 1.80 LITERS 3.0 LITERS
2.5 1.20 LITERS 1.8 LITERS
1.0 0.35 LITERS 0.5 LITERS
