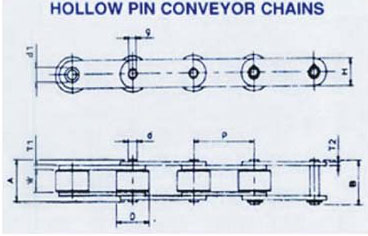

| HOLLOW PIN CONVEYOR CHAINS |
 |
|
Pitch(P) | Width between inner plates(W)(min) | Roller Diar (d)(max) |
Bush Dia (D1) |
Plate Depth(H) | Inner(T1) | Outer (T2) | Pin Dia(d) (Max) | Pin Dia(G) (Min) | B/PinLength (A.Max) |
C/Pin Length(B.Max) | Average Weight (KG/M)) | Tensile Strength(Kg)(Min) |
W08201 |
50.80
|
15.00 | 31.80 | 18.85 | 26.29 | 4.00 | 4.00 | 13.80 | 10.10 | 37.20 | 39.00 | 4.11 |
3,000
|
W12202
|
76.20 |
19.05 | 47.62 | 25.20 | 36.00 | 5.56 | 4.00 | 18.26 | 13.20 | 47.10 | 48.80 | 6.48
|
8,000 |
W16203 |
101.60 |
25.40 | 66.67 | 34.25 | 50.80 | 6.30 | 5.00 | 26.92 | 20.10 | 57.60 | 59.40 | 12.20 |
13,600 |
