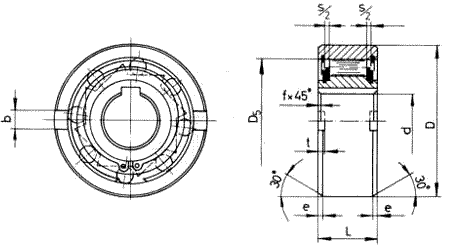

| SIZE dH7 mm | TN¹ Nm | OVERRUNNING SPEED² | Dn6 mm | D2 mm | D4 mm | Lmm | smm | f mm | e mm | b mm | t mm | I mm | WEIGHT kg | |
| INNERRACE ñmax min | OUTERRACE min ¹ | |||||||||||||
12 15 20 |
9.5 30 85 |
1000 750 560 |
1000 750 560 |
37 47 62 |
20 26 35 |
28 37 50 |
20 30 36 |
4.5 4.5 5.5 |
0.5 0.8 0.8 |
0.8 1.2 1.2 |
6 7 8 |
3 3.5 3.5 |
- - - |
0.11 0.30 0.55 |
25 30 35 |
124 230 290 |
1400 1300 290 |
3400 3000 2800 |
80 90 100 |
40 45 50 |
68 75 80 |
40 48 53 |
- - - |
1 1 1 |
1.8 1.8 1.8 |
9 12 13 |
4 5 6 |
0.2 0.2 1.2 |
1.2 1.8 2.4 |
40 45 50 |
490 670 1100 |
950 900 850 |
2500 2400 2000 |
110 120 130 |
55 60 70 |
90 95 110 |
63 63 80 |
- - - |
1.5 1.5 1.5 |
1.8 2.6 2.6 |
15 16 17 |
7 7 8.5 |
2.2 2.2 2.7 |
3.3 4.0 5.7 |
55 60 70 |
1250 1800 2650 |
720 680 580 |
1960 1800 1600 |
140 150 170 |
75 80 90 |
115 125 140 |
80 95 110 |
- - - |
2 2 2.5 |
2.6 2.6 2.6 |
18 18 20 |
9 9 9 |
4.2 3.2 1.1 |
6.5 8.9 13.5 |
80 90 100 |
4000 7500 9500 |
480 380 350 |
1400 12500 1100 |
190 215 260 |
105 120 140 |
160 180 210 |
125 140 150 |
- - - |
2.5 3 3 |
2.6 3.6 3.6 |
20 24 28 |
9 11.5 14.5 |
0.0 0.6 2.6 |
19 27 45 |
| 120 | 16000 | 250 | 950 | 950 | 160 | 240 | 180 | - |
4 | 3.6 | 32 | 18 | 2.0 | 67 |
KEYWAYS:TO DIN 6885 PAGE 1 1)NOMINAL TORQUE TMAX-2.5x TN FOR BRIEF PERIODS ONLY 2)FOR OIL BATH LUBRICATIONS FOR CIRCULATION OILING 180% FOR GREASR LUBRICATION 50%
|
* PNR 12-20 WITH FRICTION BEARING STEEL ON STEEL PNR 25-120 WITH BALL BEARINGS. |
