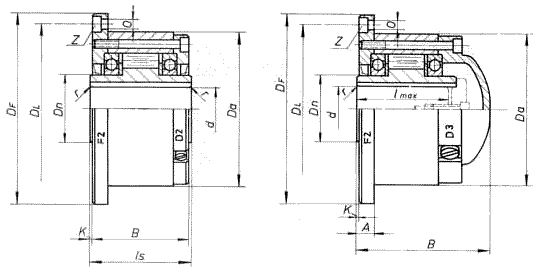

| SIZE dH7 mm | NOMINAL TORQUE¹ Tn Nm | OVERRUNNING SPEED² | Da h7mm | lsmm | DFmm | DL mm | Z | Omm | Amm | F2-D2 Bmm
|
F2-D3 B mm |
Kmm | rmm | lMAX mm | |
| max INNERRACE RPM | max OUTERRACE RPM | ||||||||||||||
12 15 20 |
29 50 84 |
2400 1800 1500 |
4800 4300 3700 |
62 68 75 |
42 52 57 |
85 92 98 |
72 78 85 |
3 3 4 |
5.8 5.8 5.8 |
11 11 11.5 |
40 50 55 |
57 66 72 |
1 1 1 |
0.5 0.8 0.8 |
38 48 53 |
25 30 35 |
124 230 290 |
1300 1150 1000 |
3100 2600 2200 |
90 100 110 |
60 68 74 |
118 128 138 |
104 114 124 |
4 6 6 |
7 7 7 |
11.5 12 13 |
58 66 71 |
75 83 88 |
1 1 1.5 |
1 1 1 |
55 63 69 |
40 45 50 |
490 670 1100 |
900 800 750 |
1900 1700 1600 |
125 130 150 |
86 86 92 |
160 165 185 |
142 146 166 |
6 8 8 |
9 9 9 |
15 15 14.5 |
83 83 88 |
102 102 110 |
1.5 1.5 2 |
1.5 1.5 1.5 |
80 80 86 |
55 60 70 |
1250 1800 2650 |
650 600 500 |
1500 1400 1300 |
160 170 190 |
104 114 134 |
204 214 234 |
182 192 212 |
8 10 10 |
11 11 11
|
18.5 18 19.5 |
100 110 130
|
126 136 157 |
2 2 2 |
2 2 2.5 |
97 107 127 |
80 90 100 |
4000 7500 9500 |
400 300 250 |
1150 1000 900 |
210 230 270 |
144 158 182 |
254 278 335 |
232 254 305 |
10 10 10 |
11 13 17 |
22 21.5 31
|
140 153 176 |
166 183 210 |
2 2.5 3 |
2.5 3 3 |
137 150 172 |
120 150
|
13900 27000
|
180 120
|
700 450
|
310 400
|
202 246
|
375 485 |
345 445 |
12 12 |
17 22 |
31 33 |
196 240 |
230 278 |
3 3 |
4 4 |
192 236 |
KEYWAY TO DIN 6885 PAGE 1 1)T MAX IS 2.5 x NOMINAL TORQUE (Tn)FOR SHORT PERIODS ONLY. THE max. OVERRUNNING SPEEDS ARE FOR OIL BATH LUBRICATIONS ONLY. FOR PRESSURE LUBRICATION 150% OF INDICATED SPEEDS FOR GREASE LUBRICATION 50% OF INDICATED SPEEDS. IF HIGHER SPEED ARE REQUIRED OTHER THAN THOSE LISTED PLEASE CONSULT. |
WHEN ORDERING PLEASE INDICATE DIRECTION OF ROTATIONS: -R- WHEN VIEWED FROM COVER ,D2/D3 INNER RACE OVERRUNS IN ANTICLOCKWISE DIRECTIONS. FREEWHEEL WITH SPECIALS BORE SIZE ARE AVAILABEL. |
