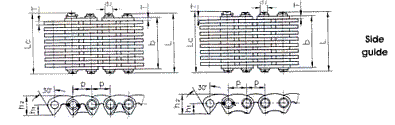

| Wiper Chain no. | PITCH | CHAIN WIDTH | PIN DIAMETER | PIN LENGTH | DISTANCE FROM HOLE CENTER TO TOOTH | PLATE DEPTH | PLATE THICKNESS | GUIDE FORM | NUMBER OF PLATES | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P mm | b MIN mm | b MIN mm | L MAX mm | LC MAX mm | h1 mm | h2 mm | T mm | n | Q min kN | Q0 kN | Q kG/m | ||
CL06
CL10
CL12
CL16
CL20
|
9.525
15.875
19.050
25.400
31.750
|
13.5 16.5 19.5 22.5 28.5 19.5 22.5 25.5 28.5 34.5 40.5 46.5 52.5 30.0 38.0 46.0 54.0 62.0 38.0 46.0 54.0 62.0 70.0 45.0 51.0 57.0 69.0 81.0 93.0 57.0 69.0 81.0 93.0 105.0 117.0
|
3.95
5.08
5.92
6.90
8.90
10.84 |
18.5 21.5 24.5 27.5 33.5 24.5 27.5 30.5 33.5 39.5 45.5 51.5 57.5 37.5 45.0 53.0 61.0 69.0 45.0 53.0 61.0 69.0 77.0 52.0 58.0 64.0 76.0 88.2 100.2 66.6 78.6 90.6 102.6 114.6 126.6 |
20.0 23.0 26.0 23.0 35.0 26.0 29.0 32.0 35.0 41.0 47.0 53.0 59.0 38.2 46.2 54.2 62.4 70.4 46.5 54.5 62.8 70.8 78.8 53.5 59.5 65.5 77.7 89.7 101.7 69.6 81.6 93.6 105.6 117.6 129.6 |
5.3
7.0
8.7
10.5
14.0
17.5 |
10.0
13.4
16.7
20.0
26.7
33.4 |
1.5
1.5
2.0
2.0
3.0
3.0 |
(OUTSIDE) (OUTSIDE) (OUTSIDE) (OUTSIDE) (INSIDE) (OUTSIDE) (OUTSIDE) (OUTSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE)
|
9 11 13 15 19 13 15 17 19 23 27 31 35 15 19 23 27 31 19 23 27 31 35 15 17 19 23 27 31 19 23 27 31 35 39
|
10.0 12.5 15.0 17.5 22.5 23.4 27.4 31.3 35.2 43.0 50.8 58.6 66.4 45.6 58.6 71.7 84.7 97.7 70.0 86.0 102.0 117.0 133.0 111.0 125.0 141.0 172.0 203.0 235.0 165.0 201.0 237.0 273.0 310.0 346.0
|
11.2 14.0 16.8 19.6 25.2 26.2 30.6 35.0 39.4 48.1 56.8 65.6 74.3 50.6 65.0 79.5 94.0 108.4 77.6 95.4 113.2 129.8 147.6 123.2 138.7 156.6 190.9 225.3 260.8 183.1 223.1 263.2 303.0 341.0 380.6
|
0.60 0.73 0.85 1.00 1.26 1.15 1.33 1.50 1.68 2.04 2.39 2.74 3.10 2.21 2.80 3.39 3.99 4.58 3.37 4.08 4.78 5.50 6.20 5.31 6.02 6.37 8.15 9.57 10.98 8.42 10.19 11.96 13.73 15.50 17.27
|
