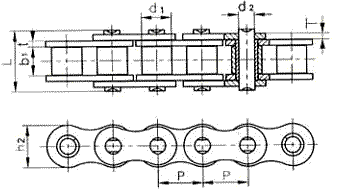

| Wiper Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensil strength | Average tensile strength | Weight per meter |
| P mm | d1 max mm | b1 min mm | d2 max mm | L max mm | h2 max mm | t/T max mm | Q min kN | Qo kn |
q kg/m | |
25H 25-1 *25-2 *219H *270H *35 #BF05T #06AT #06BT-1 #06BT-2 |
6.350 6.350 6.350 7.774 8.500 9.525 8.00 9.525 9.525 9.252 |
3.30 3.30 3.30 4.59 5.00 5.80 4.71 6.35 6.35 6.35
|
3.18 3.18 3.18 5.00 4.75 4.77 4.61 3.94 5.72 5.72
. |
2.31 2.31 2.31 3.01 3.28 3.58 3.05 3.28 3.28 3.28
|
8.90 7.90 14.50 11.90 13.15 12.40 11.48 10.50 12.50 22.90 |
6.00 6.00 6.00 7.50 8.45 9.00 8.20 8.20 8.20 8.20
|
1.40 0.80 0.80 1.2/1.0 1.8/1.4 1.30 1.3/1.04 1.3/1.04 1.3/1.04 1.3/1.04 |
4.8 3.5 7.0 6.6 9.8 7.9 7.0 8.9 9.0 16.9 |
5.5 4.6 8.6 7.4 11.0 10.0 9.8 10.0 10.0 17.9 |
0.17 0.15 0.28 0.28 0.33 0.33 0.35 0.34 0.38 0.73 |
 |

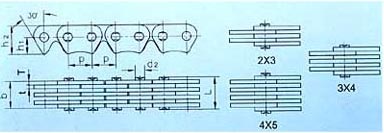

| Wiper Chain No | Pitch | Chain Width | Pin diameter | Pin length | Distance from hole centre to tooth | plate depth | Plate thickness | Quide form | number of plate | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P mm | d1 max mm | b1 min mm | d2 max mm | h1 mm | h2 max mm | l/T max mm | n | Q min kN | Q0 kN | q kg/m | ||
CL04 CL04 CL04 |
6.35 6.35 6.35 |
4.35 6.35 9.40 |
2.70 2.70 2.70 |
6.2 8.3 10.9 |
3.9 3.9 3.9 |
6.7 6.7 6.7 |
1.04/0.75 1.04/0.75 1.04
|
(Outside) (Outside) (Outside) |
5 7 9 |
5.88 8.82 1.76 |
6.6 9.8 13.2 |
0.22 0.22 0.35 |
