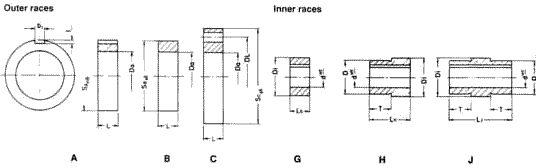

DW TYPE INNER AND OUTER RACE

DW TYPE INNER AND OUTER RACE
TYPE	dH7	LG	tH	Lj	D j6	T	D+0.005 -0.005	L	SA n	bj P9	l1	Sc S6	Sc GS	DL ±0,1	NUMBER AND SIZE OF HOLES	Da ±0,013
DW230 A DW230B DW230 C								16 16 16	72	6	3.5	72	95	78	8X7	54.75 54.75 54.75
DW 230 G-10 DW 230 G-15 DW 230 G-20	10 15 20	16 16 16					38.092 38.092 38.092
DW230H10 DW230H15 DW230H20	10 15 20		33 33 33		35 35 35	17 17 17	38.092 38.092 38.092
DW230J10 DW230J15 DW230J20	10 15 20			50 50 50	35 35 35	17 17 17	38.092 38.092 38.092
DW167A DW167B DW167C								16 16 16	90	10	5	90	110	96	8X9	71.427 71.427 71.427
DW167G-25 DW167G-30 DW167G-35	25 30 35	16 16 16					54.765 54.765 54.765
DW167H-25 DW167H-30 DW167H-35	25 30 35		35 35 35		50 50 50	19 19 19	54.765 54.765 54.765
DW167J-25 DW167J-30 DW167J-35	25 30 35			54 54 54	50 50 50	19 19 19	54.765 54.765 54.765
DW168A DW168B DW168C								21 21 21	110	14	5.5	110	140	120	8X11	88.882 88.882 88.882
DW 168 G-40 DW 168 G-45 DW 168 G-50	40 45 50	21 21 21					72.217 72.217 72.217
DW 168 H-40 DW 168 H-45 DW 168 H-50	40 45 50		42 42 42		65 65 65	21 21 21	72.217 72.217 72.217
DW 168 J-40 DW 168 J-45 DW 168 J-50	40 45 50			63 63 63	65 65 65	21 21 21	72.217 72.217 72.217
DW235A DW235B DW235C								16 16 16	150	20	7.5	150	190	170	8X11	119.893 119.893 119.893
DW235G-55 DW235G-60 DW235G-75	55 60 75	16 16 16					103.231 103.231 103.231
DW235H-55 DW235H-60 DW235H-75	55 60 75		43 43 43		100 100 100	27 27 27	103.231 103.231 103.231
DW235J-55 DW235J-60	55 60			70 70	100 100	27 27	103.231 103.231

KEYWAY TO DIN 6885 SHEET t

BOLTS min. GRADE 8.8

SPECIALS SIZES AVAILABLE ON REQUEST

ALL DIMENSIONS ARE IN mm

MEASUREMENTS AND DESIGN ARE SUBJECT OT MODIFICATIONS
