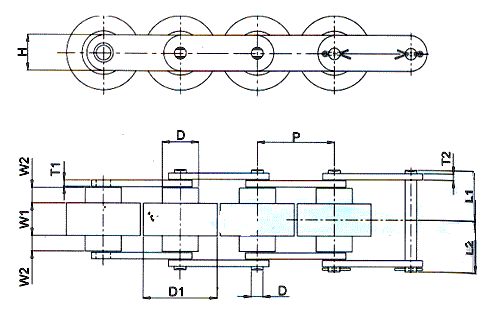

| INTEL.REF.NO. | CHAIN NO. | PITCH (P) | (D) | (D1) | (W1) | (W2) | (T1) | (T2) | (H) | (D) | (L1) | (L2) | AVG.WEIGHT PER METER(KG) |
| C2040 | A08A01 DP 01 | 25.40 | 15.88 | 24.60 | 10.30 | 5.70 | 1.50 | 1.50 | 11.6 | 3.97 | 15.30 | 16.50 | 1.00 |
| C2050 | A10201DP01 | 31.75 | 19.05 | 30.60 | 13.00 | 7.10 | 2.00 | 2.00 | 14.58 | 5.09 | 19.15 | 19.85 | 1.40 |
| C2060H | A12Z010005 | 38.10 | 22.23 | 36.60 | 15.50 | 8.50 | 3.15 | 3.15 | 18.06 | 5.94 | 24.50 | 26.40 | 2.40 |
