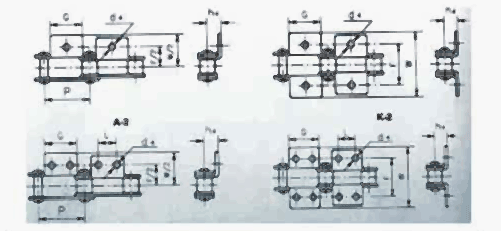

| DOBBLE PITCH CONVEYOR CHAIN ATTACHMENT |
| Din ISO Chain NO |
ANSI CHAIN NO. |
P mm |
G mm |
L mm |
F mm |
W mm
|
h4 mm |
d4 mm |
| C208A
C208AL
|
C2040
C2042 |
25.4 |
19.1 |
9.5 |
25.4 |
39.6 |
9.1 |
3.4 |
C208B
C208BL |
|
52.4 |
23.2 |
12.7 |
25.4 |
39.6 |
9.1 |
4.5 |
C210A
C210AL |
C2050
C2052 |
31.75 |
23.8 |
11.9 |
31.8 |
49.0 |
11.1 |
5.5 |
C212A
C212AL |
C2060
C2062 |
38.1 |
28.6 |
14.3 |
42.9 |
67.8 |
14.7 |
5.5 |
C212AH
C212AHL
|
C2060H
C2062H |
38.1 |
28.6 |
14.3 |
42.9 |
67.8 |
14.7 |
5.5 |
C216A
C216AL |
C2080
C2082 |
50.8 |
38.1 |
19.1 |
55.6 |
87.8 |
19.1 |
6.8 |
C2164AH
C2164AHL |
C2080H
C2082H |
50.8 |
38.1 |
19.1 |
55.6 |
87.8 |
19.1 |
9.8 |
C220A
C220AL |
C2100
C2102 |
63.5 |
47.6 |
23.8 |
66.6 |
107.5 |
23.4 |
9.2 |
C220AH
C220AHL |
C2100H
C2102H |
63.5 |
47.6 |
23.8 |
66.6 |
107.5 |
23.4 |
9.2 |
C224A
C224AL |
C2120
C2122 |
76.2 |
57.2 |
28.6 |
79.3 |
121.4 |
27.8 |
11.0 |
C224AH
C224AL |
C2120H
C2122H |
76.2 |
57.2 |
28.6 |
79.3 |
121.4 |
27.8 |
11.0 |
C232A
C232AL |
C2160
C2162 |
101.6 |
76.2 |
38.1 |
104.7 |
151.6 |
36.5 |
13.1 |
C2324H
C2324HL |
C2160HC
C2162H |
101.6 |
76.2 |
38.1 |
104.7 |
151.6 |
36.5 |
13.1 |
|
