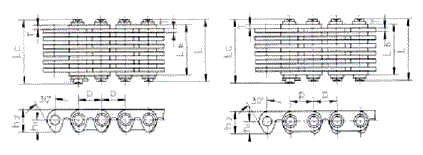

| WIPER CHAIN NO. | PITCH | CHAIN WIDTH | PIN DIAMETER | PIN LENGTH | DISTANCE FROM HOLE CENTRE TO TOOTH | PLATE DEPTH | PLATE THICKNESS | GUIDE FROM | NUMBER OF PLATES | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P mm | d2 max mm | d2 max mm | L max mm | Lc max mm | h1 max mm | h2 max mm | T max mm | n | QO kN | Q0 kN | q kg/M | ||
C4-120 C4-123 C4-129 C4-132 C4-138 C4-150 C4-320 C4-323 C4-329 C4-332 C4-338
|
12.7
|
19.5 22.5 28.5 31.5 37.5 49.5 19.5 22.5 28.5 31.5 37.5
|
5.08 |
24.5 27.5 33.5 36.5 42.5 54.5 24.5 27.5 33.5 36.5 42.5
|
26.0 29.0 35.0 38.0 44.0 56.0 26.0 29.0 35.0 38.0 44.0
|
6.625 |
12.1 |
1.5 |
(INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (INSIDE) (OUTSIDE) (OUTSIDE) (OUTSIDE) (OUTSIDE) (OUTSIDE)
|
13 15 19 21 25 33 13 15 19 21 25 |
20.0 230 28.5 31.0 38.0 50.0 20.0 23.0 28.5 31.0 38.0
|
22.2 25.5 31.6 34.9 42.1 55.5 22.2 25.5 31.6 34.9 42.1
|
1.20 1.37 1.72 1.89 2.22 2.90 1.21 1.38 1.73 1.90 2.23
|
