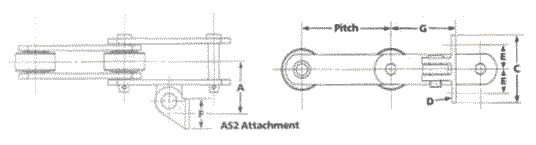

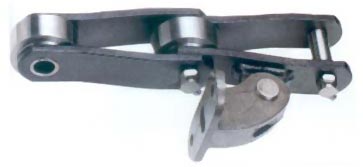

BAGASSE CONVEYOR CHAIN
 |
 |
| CHAIN |
PITCH |
ALLOWABLE CHAIN PULL |
BREAKING LOAD |
WEIGHT/FT |
PIN |
ROLLER |
SIDEBAR |
A |
B |
D |
E |
F |
G |
| LB |
KG |
PLAIN LB |
AS2 LB |
DIA |
LENGTH |
DIA |
WIDTH |
WIDTH |
THICKNESS |
| 09060 |
6 |
6.350 |
60.000 |
27.200 |
11.2 |
15.5 |
75 |
3.75 |
2.75 |
1.44 |
2.0 |
.38 |
3.5 |
4.50 |
.5 |
1.63 |
2.0 |
4.38 |
| DN2148 |
6 |
7.100 |
80.000 |
36.300 |
12.3 |
17.9 |
88 |
3.69 |
3.0 |
1.31 |
2.0 |
.38 |
3.63 |
5.00 |
.5 |
1.75 |
2.0 |
5.63 |
| 09061 |
6 |
6.350 |
85.000 |
33.600 |
12.0 |
19.5 |
.75 |
3.75 |
2.75 |
1.44 |
2.25 |
.38 |
3.5 |
4.50 |
.5 |
1.63 |
2.0 |
4.38 |
| 1796 |
6 |
7.500 |
100.000 |
45.400 |
12.6 |
17.5 |
.88 |
3.94 |
2.75 |
1.44 |
2.25 |
.38 |
3.5 |
4.50 |
.5 |
1.63 |
2.0 |
4.38 |
Roller Dia can be changed to suit special requirements Dt m Bolt Dia meter.
