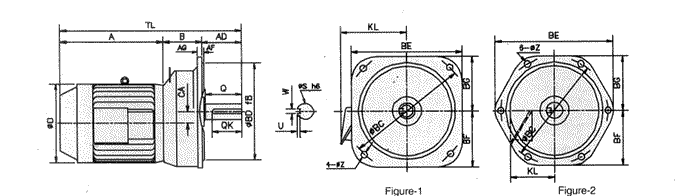

TYPE AVT-3 PHASE GEARMOTOR DIMENSIONS TABLE

CLASS MOTOR(KW) RATIO FRAME DIMENSIONS MASS(KG)
TL A AD AF AG B CA D FLANGE SHAFT-END
KL FIG BC BD BE BF BG Z Q QK S W U
S 0.4

1/5

1/10

1/15

1/20

AVTB5S

AVTB10S

AVTB15S

AVTB20S

 335 203 42 3 11 90 22 140 115 1 180 160 180 100 90 10 36 31 22 6 3.5 12.7

1/25

1/30

AVTC25S

AVTC30S

 343 203 42 3 12 98 26 140 115 1 225 180 210 115 105 12 36 31 24 8 4 14.2

1/45

1/50

1/60

1/75

AVTC45S

AVTC50S

AVTC60S

AVTC75S

 357 203 42 3 12 112 26 140 115 1 225 180 210 115 105 12 36 31 24 8 4 15.2

1/100

1/130

1/150

AVTD100S

AVTD130S

AVTD150S

 391 203 66 3 16 122 33 140 115 1 270 230 260 130 130 15 58 53 32 10 5 27.2
1/200 AVTE200S 396 203 68 5 16 135 34 140 115 1 310 250 300 150 150 19 58 53 58 10 5 35.2
0.75

1/5

1/10

1/15

1/20

AVTC5S

AVTC10S

AVTC15S

AVTC20S

 370 230 42 3 12 98 26 156 128 1 225 180 210 115 105 12 36 31 24 8 4 17.2

1/25

1/30

AVTD25S

AVTD30S

 404 230 66 3 16 108 33 156 128 1 270 230 260 130 130 15 58 53 32 10 5 29.2

1/45

1/50

1/60

1/75

AVTD45S

AVTD50S

AVTD60S

AVTD75S

 418 230 66 3 16 122 33 156 128 1 270 230 260 130 130 15 58 53 32 10 5 30.2

1/100

1/130

1/150

AVTE100S

AVTE130S

AVTE150S

 431 230 68 5 16 135 34 156 128 1 310 250 300 150 150 19 58 53 38 10 5 38.7
1/200 AVTF200S 431 230 92 5 20 152 39 156 128 2 350 310 390 180 180 19 82 77 42 12 5 49.7
1.5

1/5

1/10

1/15

1/20

AVTD5S

AVTD10S

AVTD15S

AVTD20S

 454 268 66 3 16 120 33 176 138 1 270 230 260 130 130 15 58 53 32 10 5 36

1/25

1/30

AVTE25S

AVTE30S

 465 268 68 5 16 129 34 176 138 1 310 250 300 150 150 19 58 53 38 10 5 44

1/45

1/50

1/60

1/75

AVTE45S

AVTE50S

AVTE60S

AVTE75S

 483 268 68 5 16 147 34 176 138 1 310 250 300 150 150 19 58 53 38 10 5 45.5
1/100 AVTF100S 521 268 92 5 20 161 42 176 138 2 350 350 390 180 180 19 82 77 42 12 5 56.5

1/130

1/150

AVTG130S

AVTG150S

 541 268 92 5 20 181 47 176 138 2 380 340 420 195 195 19 82 77 48 14 5.5 77
TYPE AVT-3 PHASE GEARMOTOR DIMENSIONS TABLE
CLASS MOTOR(KW) RATIO FRAME DIMENSIONS MASS(KG)
TL A AD AF AG B CA D KL FLANGE SHAFT-END
FIG BC BD BE BF BG Z Q QK S W U
S 2.2

1/5

1/10

1/15

1/20

AVTE5S

AVTE10S

AVTE15S

AVTE20S

 497 300 68 5 16 129 34 193 152 1 310 250 300 150 150 19 58 53 38 10 5 48

1/25

1/30

AVTF25S

AVTF30S

 532 300 92 5 20 140 42 193 152 2 350 310 390 180 180 19 82 77 42 12 5 58

1/45

1/50

1/60



AVTF45S

AVTF50S

AVTF60S



 553 300 92 5 20 161 42 193 152 2 350 310 390 180 180 19 82 77 42 12 5 60.5





1/75

1/100







AVTG 75S

AVTG100S



 573 300 92 5 20 181 47 193 152 2 380 340 420 195 195 19 82 77 48 14 5.5 8.1
5.5

1/5

1/10

1/15

1/20

AVTF5S

AVTF10S

AVTF15S

AVTF20S

 560 325 92 5 20 143 42 218 170 2 350 310 390 180 180 19 82 77 42 12 5 70

1/25

1/30

AVTG25S

AVTG30S

 569 325 92 5 20 152 47 218 170 2 380 340 420 195 195 19 82 77 48 14 5.5 87

1/45

1/50

1/60



AVTG45S

AVTG50S

AVTG60S



 595 325 92 5 20 178 47 218 170 2 380 340 420 195 195 19 82 77 48 14 5.5 92

1/5

1/10

1/15

AVTF100S

AVTF130S

AVTF150S

 605 362 92 5 20 151 42 260 190 2 350 310 390 180 180 19 82 77 42 12 5 91
1/20 AVTG20S 617 362 92 5 20 163 52 260 190 2 380 340 420 195 195 19 82 77 48 14 5.5 109
7.5

1/5

1/10

1/15



AVTD5S

AVTD10S

AVTD15S



 660 400 92 5 20 168 52 260 190 2 380 340 420 195 195 19 82 77 48 14 5.5 122
