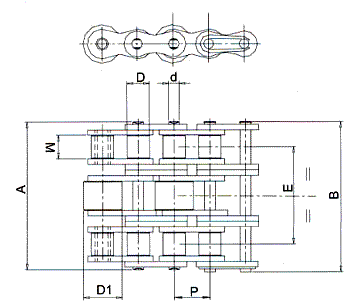

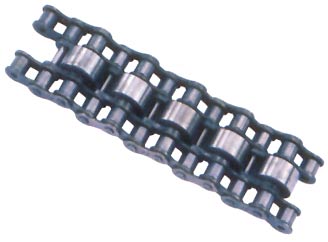

| CHAIN NO. | PITCH(P) | WIDTH BETWEEN INNER PLATES (W) (MIN) | ROLLER DIA (D)(MAX) | PIN DAI(D)(MAX) | PIN LENGTH(A)(MAX) | WIDTH OVER JOINT FASTENERS(B)(MAX) | CENTER DISTANCE(E) | CONVEYOR ROLLERS | AVG ..WEIGHT PER METER(KG) | TENSILE STRENGTH (KGF)(MIN) |
|||
| DIA (D1)(MAX) | MATERIAL | ||||||||||||
| STEEL | PLASTIC | ||||||||||||
| D083030003 | 12.70 | 7.75 | 8.51 | 4.45 | 44.90 | 46.75 | 27.84 | 16.00 | √ | Χ | 2.33 | 4540 | |
| D120030001 | 19.50 | 11.68 | 12.07 | 5.72 | 5.72 | 63.00 | 38.92 | 22.00 | √ | Χ | 3.42 | 8850 | |
| D120030002 | 19.50 | 11.68 | 12.07 | 5.72 | 5.72 | 63.00 | 38.92 | 28.00 | √ | Χ | 4.04 | 8850 | |
| D160030001 | 25.40 | 17.02 | 15.88 | 8.28 | 8.99 | 101.50 | 63.76 | 38.50 | √ | Χ | 10.63 | 17400 | |
| D160030002 | 25.40 | 17.02 | 15.88 | 8.28 | 8.99 | 101.50 | 63.76 | 27.00 | √ | Χ | 9.25 | 17400 | |
