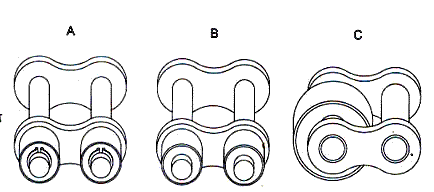

| This type of conveyor chain are used for transporting parts ,plates,pallets etc.,which rests on the accumulator roller while the chain moves at a constant linear speed. |
| CHAIN NO | PITCH (P) | WIDTH BETWEEN INNER PLATES(W)(MIN) | WIDTH OF OUTERBOARD ROLLER(B1) | DIA OF OUTBOARD ROLLER(D)(MAX) | PIN DIA (D)(MAX) | PIN LENGTH (A)(MAX) | CENTRE DISTANCE(E) | CONVEYOR ROLLERS | AVG WEIGHT PER METER (KG) | TENSILE STRENGTH (KGF)(MIN) | ||
| DIA(D1)(MAX) | MATERIAL | |||||||||||
| STEEL | PLASTIC | |||||||||||
| DO83010B02 | 12.70 | 7.75 | 4.30 | 8.51 | 4.45 | 27.25 | 19.10 | 16.00 | √ | √ | 1.31 | 1820 |
| D120010B01 | 19.05 | 11.68 | 11.10 | 12.07 | 5.72 | 48.00 | 31.50 | 24.00 | √ | √ | 2.98 | 2950 |
| D120010B03 | 19.05 | 11.68 | 7.50 | 12.07 | 5.72 | 40.25 | 27.00 | 28.00 | √ | √ | 2.53 | 2950 |
| D120010B03 | 19.05 | 11.68 | 8.80 | 12.07 | 5.72 | 43.00 | 29.20 | 26.00 | √ | √ | 2.12 | 2950 |
| D160010B01 | 25.40 | 17.02 | 12.50 | 15.88 | 8.72 | 65.25 | 45.00 | 38.50 | √ | √ | 5.64 | 5800 |
