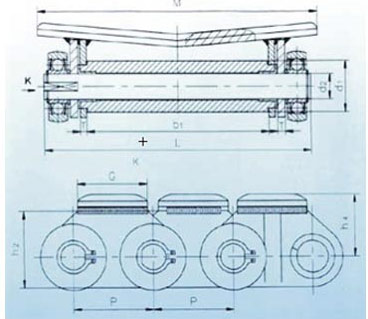

| 63PF CONVEY CHAIN |
 |
|
| Pitch | Bush |
Width between Inner plates | Pin |
Pin length | Plate Depth | Plate thickness | Attachment Dimensions | Ultimate tesile Strength | Average tensile strength | |||
| Chain No. | mm | d1 mm |
b1 min mm |
d2 mx mm |
L max mm |
h2 max mm |
T max mm |
M mm |
G mm |
h4 mm |
Q min KN |
Q0 KN |
| 63 pf | 63.0 | 40.0 | 142.0 | 25.00 | 210.0 | 60.0 | 6.0 | 220.50 | 55.0 | 49.99 | 160.0 | 176.0 |
