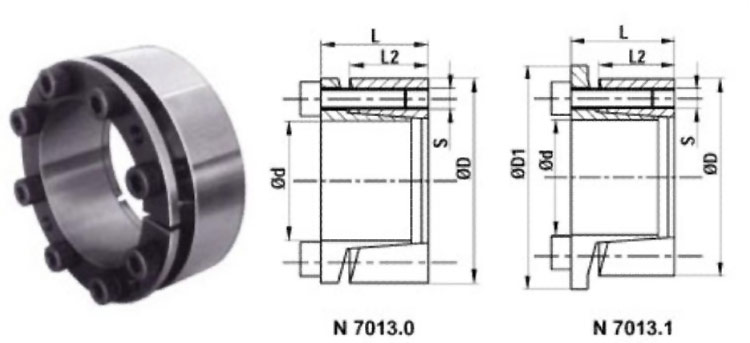

Taper Locking Element
 |
| |
Screw-DIN 912-12.9 |
| d xD |
L |
L2 |
D1 |
T
Nm |
SIze |
nos |
| 20x27 |
31.5 |
23.0 |
53 |
290 |
M6X20 |
6 |
| 22x47 |
31.5 |
23.0 |
53 |
315 |
M6X20 |
6 |
| 24x50 |
31.5 |
23.0 |
56 |
405 |
M6X20 |
6 |
| 25x50 |
31.5 |
23.0 |
56 |
435 |
M6X20 |
6 |
| 28x55 |
31.5 |
23.0 |
62 |
475 |
M6X20 |
6 |
| 30x55 |
31.5 |
23.0 |
62 |
515 |
M6X20 |
6 |
| 32x60 |
31.5 |
23.0 |
68 |
130 |
M6X20 |
8 |
| 35x60 |
31.5 |
23.0 |
68 |
190 |
M6X20 |
8 |
| 38x65 |
31.5 |
23.0 |
73 |
880 |
M6X20 |
8 |
| 40x65 |
31.5 |
23.0 |
73 |
925 |
M6X20 |
8 |
| 42x75 |
38.5 |
26.0 |
83 |
1720 |
M6X25 |
8 |
| 42x75 |
38.5 |
26.0 |
83 |
1840 |
M6X25 |
8 |
| 48x80 |
38.5 |
26.0 |
88 |
1970 |
M6X25 |
8 |
| 50x80 |
38.5 |
26.0 |
88 |
2060 |
M6X25 |
8 |
| 55x85 |
38.5 |
26.0 |
95 |
2515 |
M6X25 |
8 |
| 60x90 |
38.5 |
26.0 |
100 |
2730 |
M6X25 |
8 |
| 65x95 |
38.5 |
26.0 |
105 |
3545 |
M6X25 |
10 |
| 70x110 |
50.5 |
34.5 |
120 |
5040 |
M10X35 |
8 |
| 75x115 |
50.5 |
34.5 |
125 |
5350 |
M10X35 |
8 |
| 80x120 |
50.5 |
34.5 |
130 |
5760 |
M10X35 |
8 |
Other sizes on request .
Dimensions/Design subject to modifications.
All Dimensions are in m.m. |
