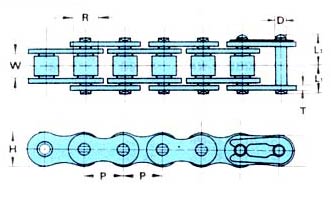

| Chain no | ISOBB/DIN NO | PITCH P | ROLLER DIA R |
WIDTH BETROLLER LINK PLATES | PIN | LINK PLATE HEIGHT (MAX)H | AVERAGE TENSIL STRENGTH kgf | MAXIMUM ALLOWABLE LOAD kgf | APPROX WEIGHT kgf | ||
| D | L1 | L | |||||||||
RF06-SS RF08-SS RF10-SS RF12-SS RF16-SS |
06B 08B 10B 12B 16B |
9.525 12.70 15.875 19.05 25.40 |
6.35 8.51 10.16 12.70 15.88 |
5.72 7.75 9.65 11.68 17.02 |
3.28 4.45 5.08 5.72 8.28
|
6.5 8.35 9.4 11.0 17.9 |
7.25 10.05 11.4 13.2 21.3 |
8.2 11.8 14.7 16.1 21.0
|
650 1,000 1,450 1,700 4,800 |
0.28 0.50 0.67 0.89 2.10 |
0.36 0.70 0.97 1.25 2.70 |
