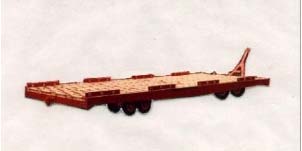

Pallet Dolley General Specification
  10 foot Dolly 20 foot Dolly
01)length Χ Breadth 3460 mm Χ 2610mm 7000 mm Χ 2610 mm
02)Max.Height( with side guide 5600mm 5600mm
03)Maximum height of roller 510mm 510mm
04)Load capacity 6 Tonnes 12 Tonnes
05)For ULD (Pallet)size 125'"Χ 96" 238.5" Χ 96(single)
  125" Χ 88" 125" Χ 96"/88"(two)
  108" Χ 96" 108" Χ 96"/88"(two).
  108"Χ 88"
06)Max running speed 15 km hr(under load) 15 km hr(under load)
No.tyres 8 16



Features

1)Frame :Heavy Roller Bed made of standard rolled steel sections.
2)Rollers :Galvanished rollers,outer dia 60.3 mm running on std.ball bearings.
3)Castors :Soft Cushion Rubber tyres fitted in swivel castor & rear rigid castor.
4)Front Tow Assembly .
5)Rear spring loaded Pintle Hook.
6)Retractable Pallet Stoppers.
7)Side Pallet guides.



Pallet Dollies are also manufactured as per the clients specification.
