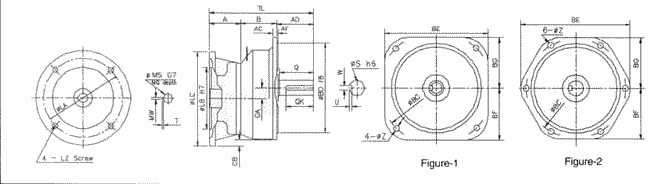

MOTOR MOUNT AVM TYPE



CLASS MOTOR(KW) RATIO FRAME DIMENSIONS(MM) MASS(KG)
TL A AD AF AG B CA CB FLANGE SHAFT-END
FIG BC BD BE BF BG Z Q QK S W U
3.7

1/5

1/10

1/15

1/20

AVF5S

AVF10S

AVF15S

AVF20S

 309 74 92 5 20 143 42 13 2 350 310 390 180 180 19 82 77 42 12 5 50

1/25

1/30

AVMG25S

AVMG30S

 318 74 92 5 20 152 47 23 2 380 340 420 195 195 19 82 77 48 14 5.5 68

1/45

1/50

1/60

AVMG45S

AVMG50S

AVMG60S

 344 74 92 5 20 178 47 23 2 380 340 420 195 195 19 82 77 48 14 5.5 73
5.5

1/5

1/10

1/15

AVMF5S

AVMF10S

AVMF15S

 334 91 92 5 20 151 42 -12 2 350 310 390 180 180 19 82 77 42 12 5 53
1/20 AVMG20S 346 91 92 5 20 163 52 -7 2 380 340 420 195 195 19 82 77 48 14 5.5 71
7.5

1/5

1/10

1/15

AVMG5S

AVMG10S

AVMG15S

 349 89 92 5 20 168 52 -7 2 380 340 420 195 195 19 82 77 48 14 5.5 76
