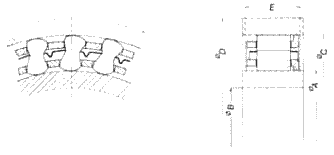

| TYPE | Amm | Cmm | SPARG SPACE mm | E mm | Dmm | B mm | NO.OF SPRAGS | TORQUE NM |
DC-2222G DC-2534G DC-2776 DC-3034 DC-3175 DC-3175A DC-3492 DC-3809A DC-3834 DC-4127 DC-4445G DC-4445A DC-4972 DC-5080A DC-5134 DC-5476 DC-5476A DC-5476B DC-5476C DC-5715A DC-5776A DC-5834A DC-5834C DC-6191B DC-6334 DC-6334B DC-6350A DC-6834B DC-6834A DC-6985 DC-7221A DC-7221B DC-7221B DC-7334B DC-7620A DC-7834B DC-7969 DC-7969C DC-8260C DC-8334A DC-8334C DC-8729A DC-9334C DC-9834C DC-10160C DC-10323A DC-10323B DC-10834C DC-11739A DC-12334A DC-12334C |
22.225 25.340 27.762 30.340 31.750 31.750 34.920 38.092 38.340 41.275 44.450 44.450 49.271 50.800 51.340 54.765 54.765 54.765 54.765 57.150 57.760 58.340 58.340 61.910 63.340 63.340 63.500 68.340 68.340 69.850 72.217 72.217 72.217 73.340 76.200 78.340 79.698 79.689 82.600 83.340 83.340 87.290 93.340 96.340 101.600 103.231 103.231 108.340 117.391 123.340 123.340 |
38.885 42.00 44.422 47.000 48.410 48.410 51.580 54.752 55.000 57.935 61.110 61.110 66.381 67.460 68.000 71.425 71.425 71.425 71.425 73.610 74.420 75.000 75.000 78.580 80.000 80.000 80.000 85.000 85.000 86.510 88.877 88.877 88.877 90.000 92.860 95.000 96.358 96.358 96.358 99.260 100.000 100.000 103.960 110.000 115.000 118.260 119.891 125.000 134.051 140.000 140.000 |
8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 8.330±0.075 |
10.0 10.0 13.5 13.5 13.5 16.0 13.5 16.0 13.5 13.5 10.0 16.0 13.5 16.0 13.5 13.5 16.0 21.0 25.4 16.0 16.0 16.0 25.4 21.0 13.5 21.0 16.0 16.0 21.0 16.0 13.5 16.0 21.0 21.0 16.0 21.0 13.5 25.4 25.4 16.0 25.4 16.0 25.4 25.4 25.4 16.0 21.0 25.4 16.0 16.0 25.4 |
49.8 52.8 57.2 61.4 62.5 62.5 65.5 70.4 70.4 74.2 78.7 78.7 85.4 86.4 87.1 91.7 91.7 91.7 91.7 97.2 97.7 99.5 99.5 101.1 103.4 103.4 103.6 108.5 108.5 110.9 114.3 114.3 114.3 117.2 121.5 123.9 123.9 123.9 130.5 131.6 131.6 133.6 139.1 146.5 150.2 154.2 154.2 162.1 172.1 183.6 183.6 |
17.30 20.20 21.60 23.50 24.60 24.60 27.60 29.70 29.70 32.00 34.50 34.50 38.80 39.60 40.10 42.60 42.60 42.60 42.60 44.20 44.90 45.50 45.50 48.50 49.90 49.90 50.10 52.50 52.50 52.80 56.10 56.10 56.10 57.10 59.20 60.50 61.90 61.90 64.40 64.90 64.90 67.80 69.50 73.50 76.50 80.20 80.20 84.50 90.10 96.20 96.20 |
12 12 14 14 16 16 16 18 18 18 18 20 22 22 22 24 24 24 24 24 26 26 26 26 26 26 26 26 26 26 30 30 30 30 30 30 34 34 34 34 34 34 34 34 40 40 40 40 40 50 50 |
74 80 139 145 189 240 170 324 251 265 183 424 366 440 375 480 618 907 1165 620 711 715 1360 1118 510 950 720 776 1250 820 794 1023 1504 1550 1100 1640 981 2396 2850 1220 2420 1477 2950 3120 3740 1900 3000 4000 2160 2825 5650 |
