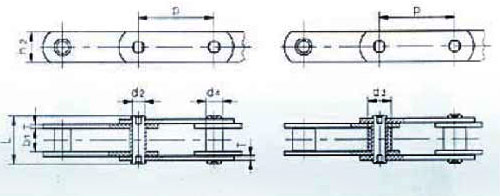

| WITHOUT ROLLER | WITH A TYPE SMALL ROLLER |
 |

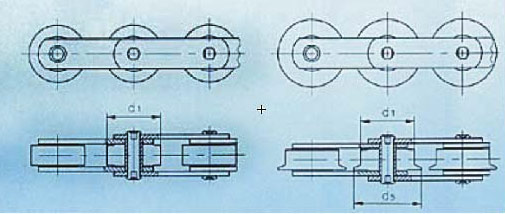

WITH B AND C TYPE LARGEROLLER |
WITH F AND G TYPE FLANGED ROLLER |
 |
| Chain No. | Pitch | Roller diameter | Bush dia | ||||||||
| P | d1 max | d3 max | d5 max | d4 max | |||||||
| mm | mm | mm | mm | mm | |||||||
M20 M28 M40 M56 M80 M112 M160 M224 M315 M450 |
40.0 50.0 63.0 63.0 80.0 80.0 100.0 125.0 160 200.0 |
63.0 80.0 100.0 100.0 125.0 125.0 160.0 200.0 250.0 315.0 |
80.0 100.0 125.0 125.0 160.0 160.0 200.0 250.0 315.0 400.0 |
100.0 125.0 160.0 160.0 200.0 200.0 250.0 315.0 400.0 500.0 |
125.0 160.0 200.0 200.0 250.0 250.0 315.0 400.0 500.0 630.0 |
160.0 200.0 250.0 250.0 315.0 315.0 400.0 500.0 630.0 800.0 |
400.0 500.0 630.0
|
25.0 30.0 36.0 42.0 50.0 60.0 70.0 85.0 100.0 120.0 |
12.50 15.00 18.00 21.00 25.00 30.00 36.00 42.00 50.00 60.00 |
35.00 40.00 45.00 55.00 65.00 75.00 90.00 105.00 125.00 150.00 |
9.0 10.0 12.0 15.0 18.0 21.0 25.0 30.0 36.0 42.0 |
