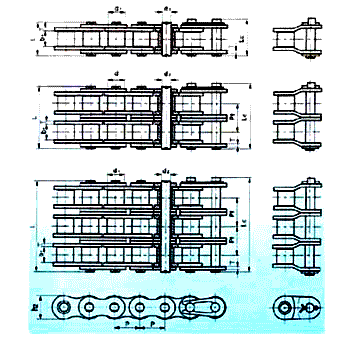

| WIPER CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | PLATE THICKNESS | TRANSVERSE PITCH | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P mm | d1 max mm | b1 min mm | d2 max mm | L max mm | Lc max m | h2 mm | T max mm | P1 mm | Q min kN | QO kN | q kg/m | |
0BB-1 08B-3 10A-1 10A-1 12A-2 16A-1 16AH-1
|
12.700 12.700 15.875 15.875 19.050 25.400 25.400
|
8.51 8.51 10.16 10.16 11.91 15.88 15.88 |
7.75 7.75 9.40 9.40 12.57 15.75 15.75 |
4.45 4.45 5.08 5.08 5.94 7.92 7.92 |
16.7 45.1 20.7 38.9 25.9 32.7 36.2 |
18.2 46.1 22.2 40.0 27.7 35.0 37.7 |
11.80 11.80 15.09 15.09 18.00 24.00 24.00 |
1.60 1.60 2.03 2.03 2.42 3.25 4.00 |
13.92
18.11 |
18.0 47.5 22.2 44.4 31.8 56.7 56.7 |
19.4 57.4 29.4 58.1 41.5 69.4 71.4 |
0.69 2.03 1.02 2.00 1.50 2.60 3.10 |
 |
| CHAIN NO. | PICH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | ATTACHMENT DIMENSIONS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | ||||
| P mm | d1 max mm | b1 min mm | d2 max mm | L1 max mm | L2 max mm | Lc max m | h2 mm | C mm | E mm | R mm | Q min kn | QO kN | |
208AF2 208AF3 |
12.7 12.7 |
7.95 7.95 |
4.80 4.80 |
3.96 3.96 |
13.1 13.1 |
14.7 | 14.5 14.5 |
12.0 12.0 |
56.5 60.5 |
40.5 |
3.5 4.5 |
13.8 13.8 |
16.0 16.0 |
 |
| CHAIN NO. | PICH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | ATTACHMENT DIMENSIONS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | ||||
| P mm | d1 max mm | b1 min mm | d2 max mm | L1 max mm | L2 max mm | h2 mm | Fmm | Cmm | d4 mm | g mm | Q min kn | QO kN | |

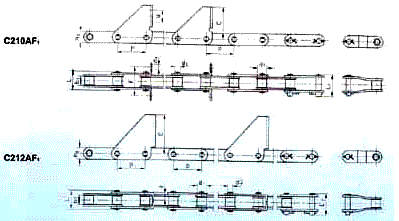

C210AF1 C212AF1 |
31.75 38.10 |
10.16 11.91 |
9.40 12.57 |
5.08 5.94 |
20.7 25.9 |
23.3 28.3 |
15.0 18.0 |
35.2 10.92 |
54.0 56.0 |
7.0 | 23.0 | 21.8 31.1 |
28.5 38.7 |
 |
| CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE THICKNESS | PLATE THICKNESS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| Pmm | d1 max mm | b1 min mm | L1 max mm | L2 max mm | h2 mm | T max mm | Q min kN | Q min kN | QO kN | ||

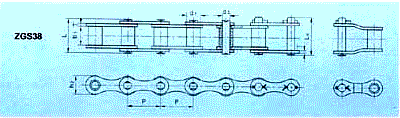

| ZGS38 | 38.0 | 16.0 | 22.00 | 9.0 | 39.0 | 43.0 | 21.5 | 3.0 | 40.0 | 55.3 | 2.00 |
