| Wiperdrive Engineering have introduced Drag cable chain used for protection of vital Machinery cables,such as Power supply cables or hose and supports them for smoth sure movement on machine & equipment.The hoses or cable moves smoothly in a circular motion,as a result frequent movement will no effect on oil pressure nor will there be any breaks in the electrical current.Three range of cable drag chain have been introduced . W65,W95 and W120 ,in galvinised steel & SS304 in Aluminium/non metalic stay bare.The minimum redius that can be accommodated is 125 mm & approcimate working width is 500 mm.The maximum cable dissentions that can be accommodable is 80 mm. |

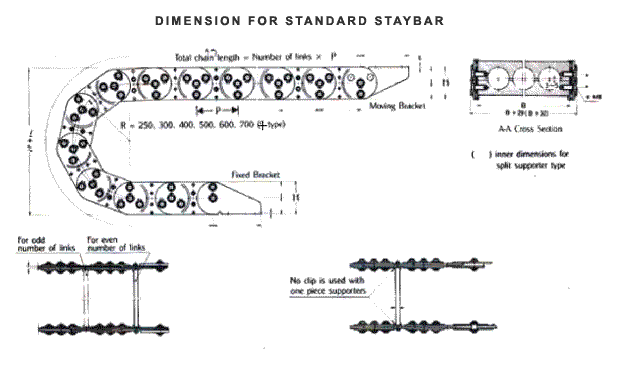

| CHAIN SIZE | BENDING RADIOUS | CHAIN PITCH | MAX.DIST.OF THE FREESPAN(M) | MAX. MOVING STROCK(M) | MAX. CABLE/HOSE DIA.(MM) | WT.OF CHAIN (KGF/M) | ||
| WITHOUT SUPPORT | WITHONE SUPPORT ROLLER | WITH 2 SUPPORT ROLLER | ||||||
| W65 | 75 90 125 145 |
65 | 3.5 | 6.7 | 10.1 | 13.4 | 27 | 6 |
| W95 | 145 200 250 300 |
95 | 4.5 | 8.7 | 13.0 | 17.4 | 46 | 6 |
| W120 | 200 250 300 400 |
120 | 6.0 | 11.6 | 17.4 | 23.2 | 60 | 17 |
