BALT HUBS

QLT WELD -ON HUBS

QLT weld-on hubs are suitable for use in many applications,such as welding to plate steel wheels.Weld-on hubs are made of steel,drilling,taped and tapered bored to receive QTL bushing.

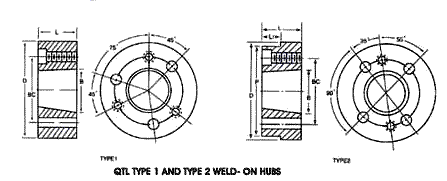

QLT TYPE 1 AND TYPE 2 WELD-ON HUBS



CATALOGUE NO. DIMENSIONS -INCHES TYPE DRILLING BC TORQUE TRANSMITTED BOLT STRESS IN POUNDS PER SQ.IN WEIGHT POUNDS
D* L B P+ L1   6.000 9.000 12.000

SH-A

SDS-A

SK-A

SF-A

E-A

F-A

J-A

M-A

M-A

3.000

3.5000

4.375

5.000

6.250

7.000

7.750

9.500

10.5000



13/16

3/4

11/4

11/4

15/8

21/2

33/16

53/16

61/4

1.871

2.188

2.813

3.125

3.832

4.437

5.140

6.494

6.990

-

-

-

-

-

-

-

9.250

10.250

-

-

-

-

-

-

-

39/16

41/2

21/4

211/16

35/16

37/8

5

55/8

61/4

77/8

81/2

1

1

1

1

1

1

1

2

2

950

1.130

2.400

4.060

9.240

13.960

49.000

73.200

1.425

1.695

3.600

6.090

13.860

20.940

29.325

73.500

109.800

1.900

2.260

4.800

8.120

18.480

27.920

39.100

98.000

146.400

1

1.30

3

4

9

16

25

50

75

* TOLERANCE OF 'D'.'SH' HRU'J'=(+.00-.002)

+TOLERANCE OF 'P'.'M'AND 'N'=(+.000-.003)
