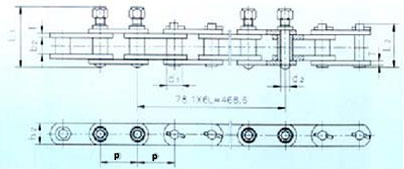

78P CONVEYOR CHAIN




Chain No. Pitch Bush dia With Belt Inner Plate Pin dia Pin Length Plate depth Plate thick Ultimate Tensile Strength Average tensile strength Wight Per Meter
p d1 Max b1 min d2 Max L1 Max L2 max h2 max T max Q min Q0 q
mm mm mm mm mm mm mm mm kn kn kg/m
78P 78.1 31.78 34.5 19.05 131.5 90.5 9.6 9.6 140.0 166.88 14.09
