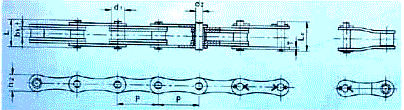

| CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | HOLLW INNER DIAMETER | PIN LENGTH | INNER PLATE DEPTH | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | ||
| P mm | d1 max mm | b1 min mm | d2 max mm | d3 min mm | L1 max mm | L2 maxmm | Lc max mm | h2 max mm | Q min kN | Q0 kN | |
| 216BF1 | 50.8 | 15.88 | 17.02 | 8.28 | 35.3 | 37.8 | 35.8 | 41.3 | 22.0 | 60.0 | 70.8 |
|
| CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | PLATE THICKNESS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P mm | b1 min mm | d2 max mm | d2 max mm | L max mm | Lc max mm | h2 mm | t /T max mm | Q min kN | QO kN | q kg/M | |
| CA6501 | 50.8 | 25.0 | 19.0 | 11.28 | 49.2 | 53.7 | 25.0 | 3.5/5.0 | 120.0 | 131.0 | |
